P2.5
Good Display
China
Good Display
yes
320*160mm
2.5 mm
Kinglight
Availability: | |
---|---|
Quantity: | |
Product Description

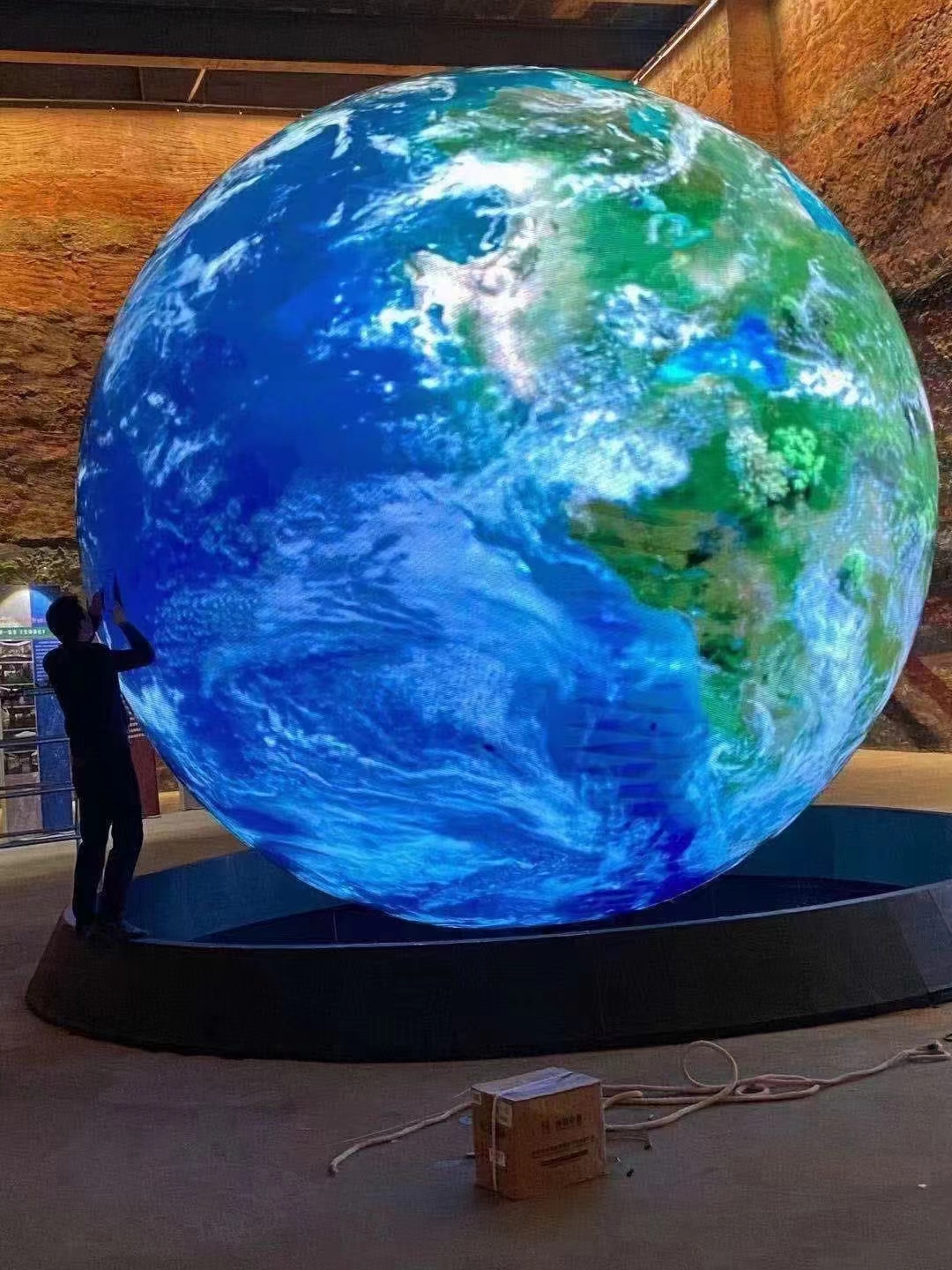

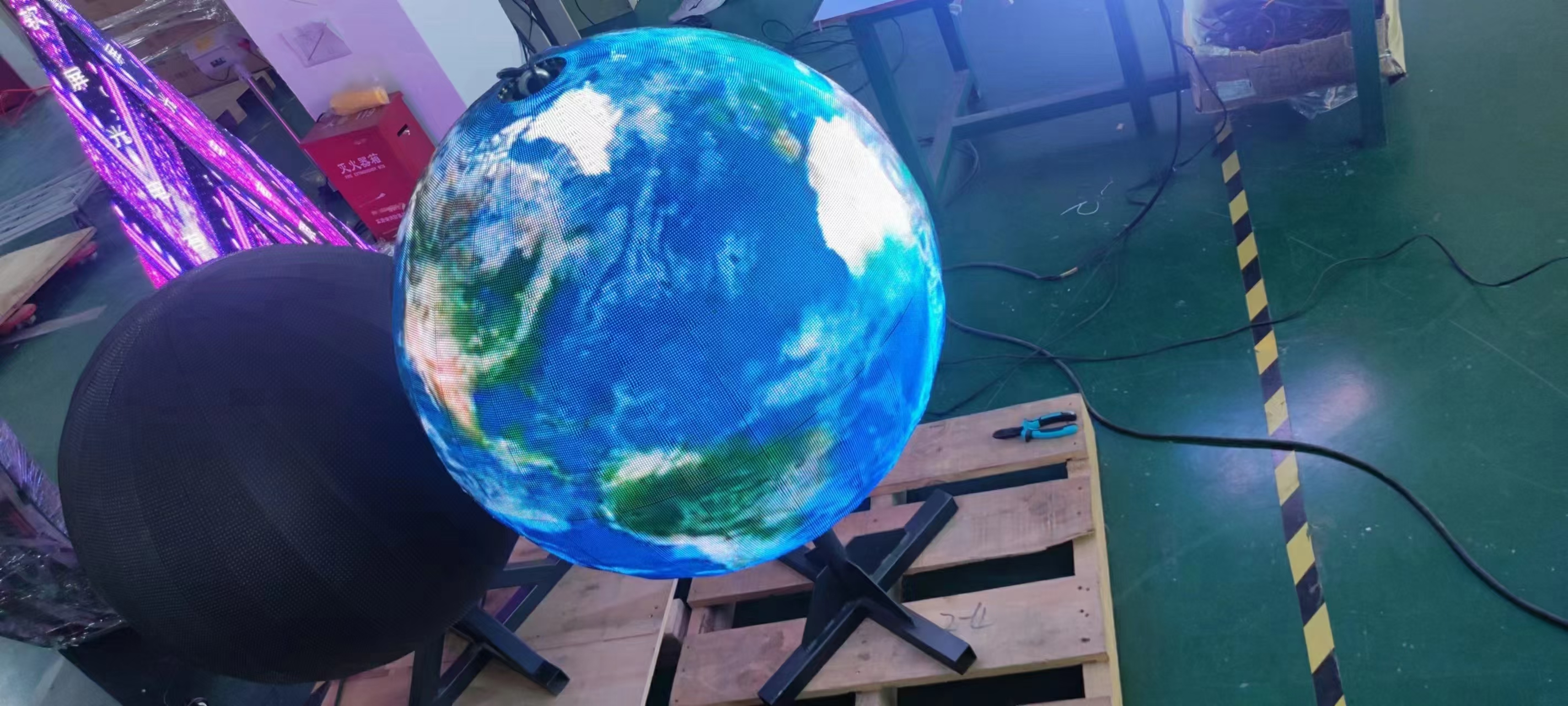

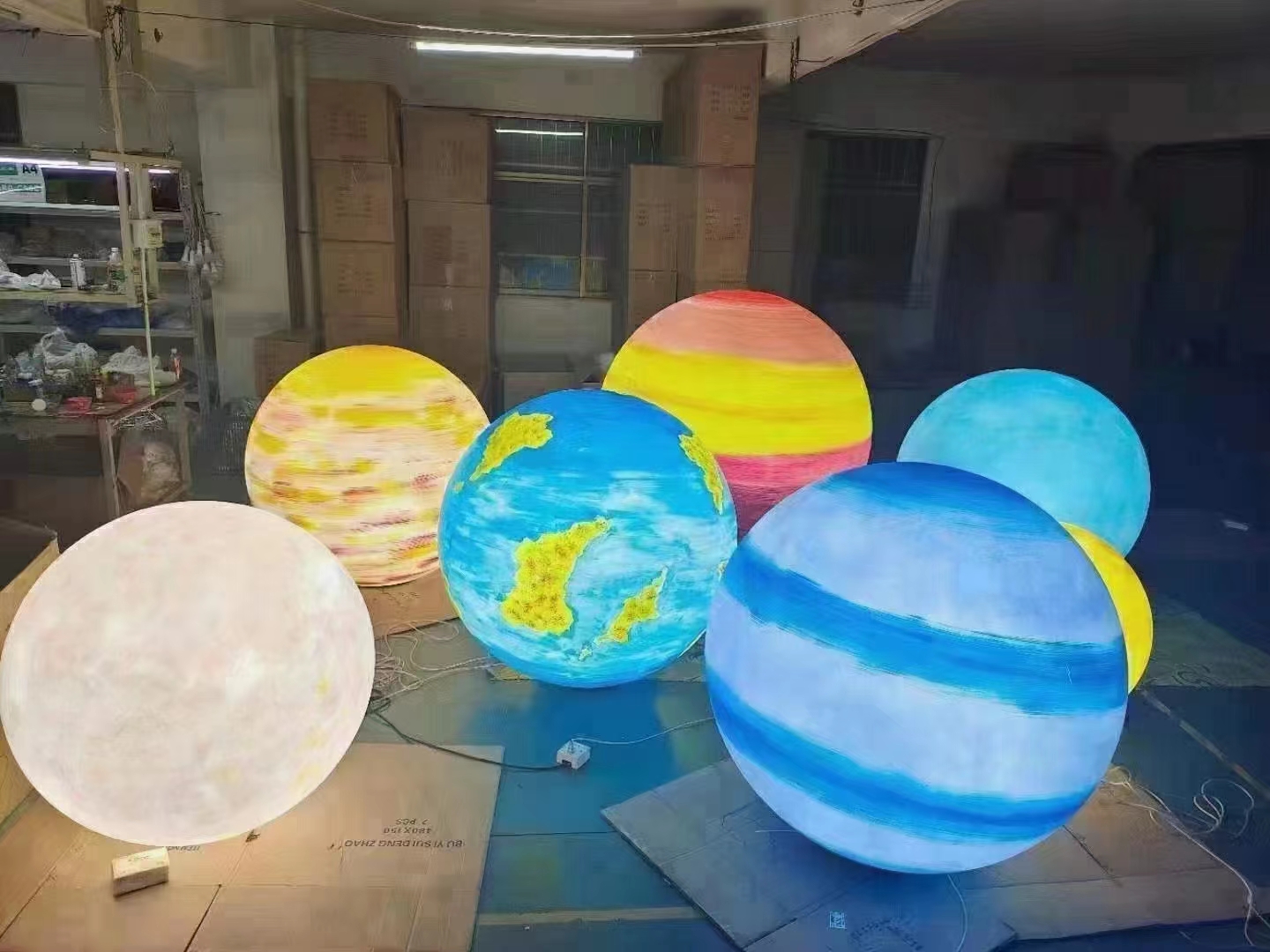

P2.5 Sphere display
Sphere display screen is a special form of display screen.
It has the following characteristics and uses
360-degree visibility:
The sphere display can display content in all directions, providing a full range of visual experience. This makes it very attractive for displaying information, artwork or immersive environments.
Three-dimensional and realistic:
Through the shape of the sphere and display technology, it can present a more three-dimensional and realistic image effect, enhancing the audience's immersion and interactivity.
Attract attention:
The unique spherical shape and dynamic display content can often attract people's attention, making it a highlight in exhibitions, advertising or public places.
Versatility:
The sphere display can be used for a variety of applications, such as displaying sphere maps, data visualization, virtual reality experiences, art performances, etc.
Interactivity:
Some spherical displays support interactive functions, and viewers can interact with the displayed content through touch, gestures or other sensors, increasing participation and fun.
Application scenarios
application scenarios

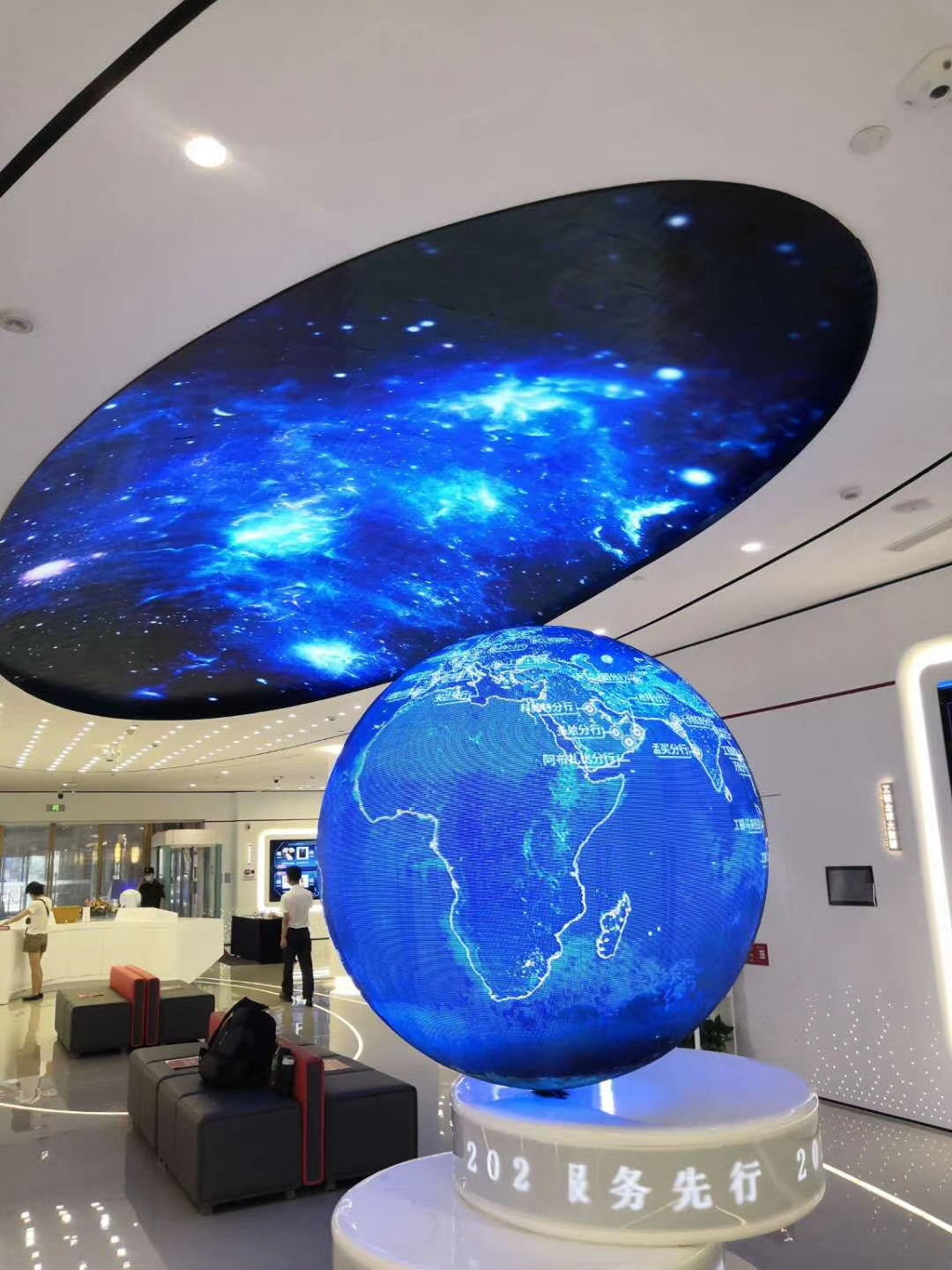

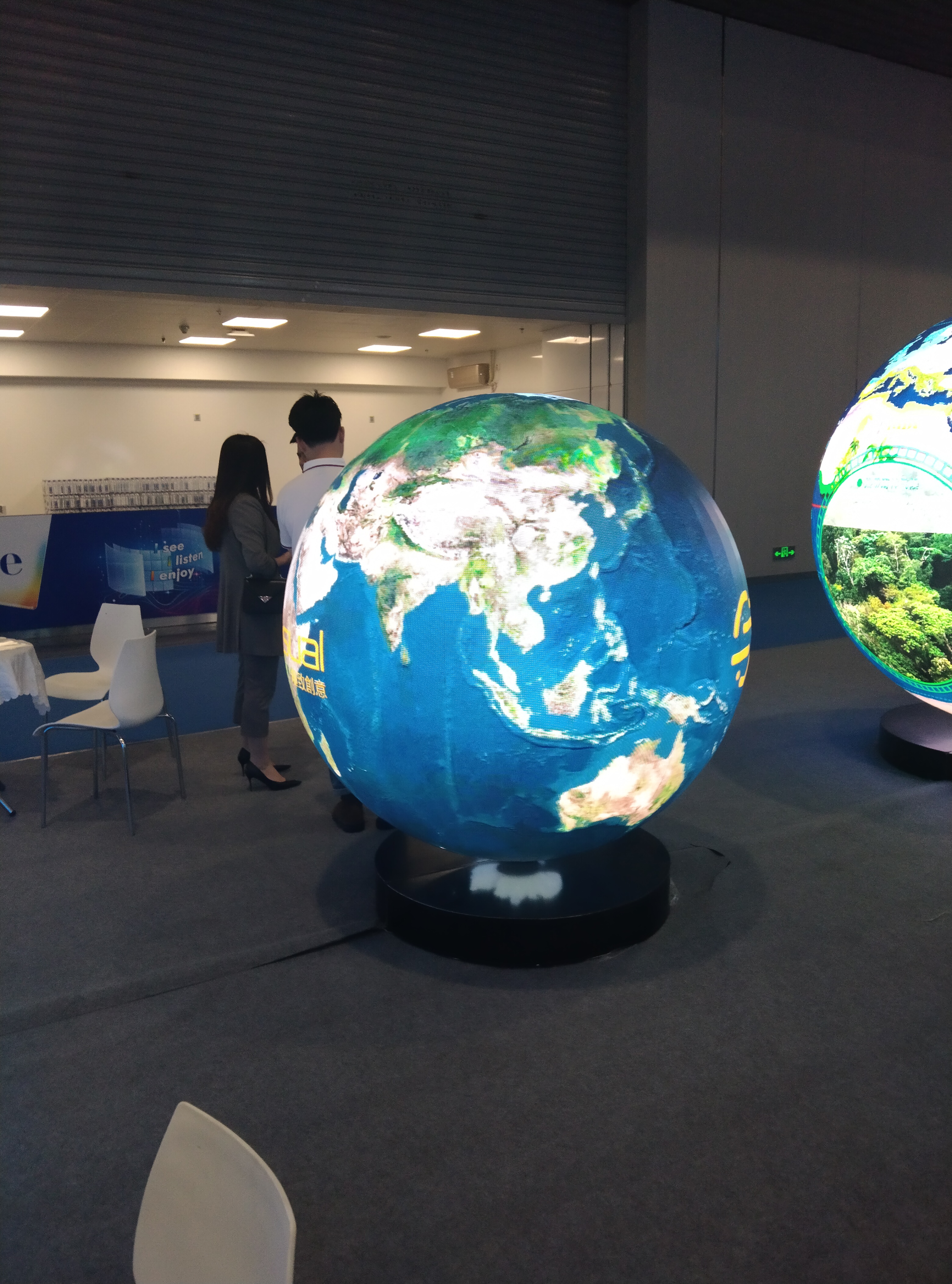

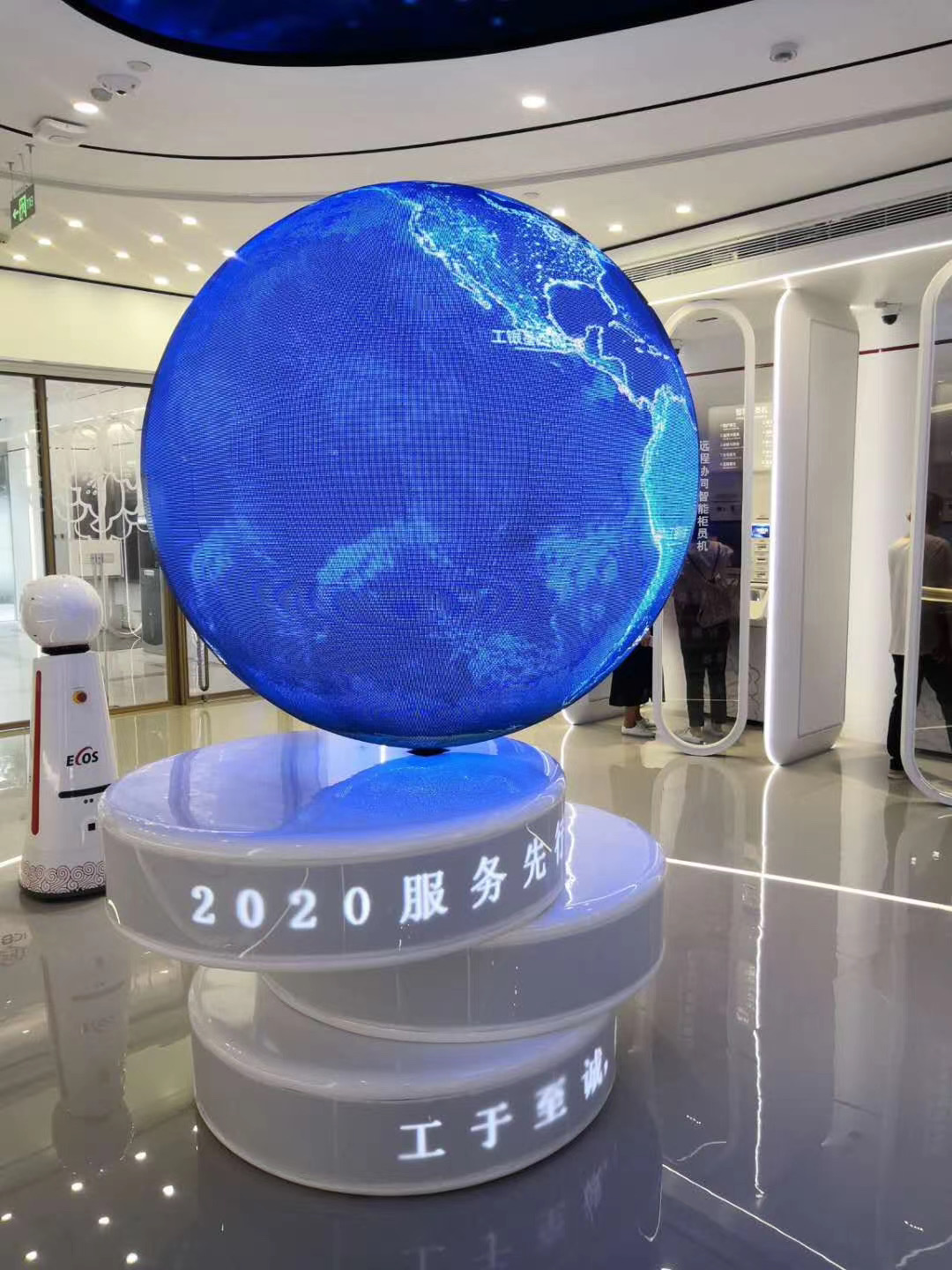

Science and technology museums, museums and exhibition halls:
used to display scientific knowledge, history and culture, artworks, etc., and provide interactive and immersive visiting experiences.
Stage performances and art performances:
As part of the stage scenery or art installation, create unique visual effects and performance atmosphere.
Commercial advertising and publicity:
Display advertisements and brand information in shopping malls, squares and other places to attract customers' attention.
Sports venues and activities:
Used to display game scores, statistical data, audience interaction, etc., to increase the atmosphere and entertainment of the scene.
Education and training:
Used in educational venues to display teaching content in a vivid way to improve students' learning interest and participation.
Product parameters
P4mm LED spherical screen parameters | |||||
Technical Parameters | |||||
number | Product name | brightness | Angle(H/V) | wavelength | Test temperature and current |
1 | Red LED | 102~125mcd | 120o/120o | 620~625nm | 25℃,20mA |
2 | Green LED | 240~300mcd | 120o/120o | 520~525nm | 25℃,20mA |
3 | Blue LED | 60~80mcd | 120o/120o | 470~475nm | 25℃,20mA |
Technical Parameters | |||||
1 | LED | SMD2121 | |||
2 | LED Pixel composition | 1R1G1B | |||
3 | white balance ratio | 0.129178241 | |||
4 | Pixel pitch | 4mm | |||
5 | Pixel density | 62500/m2 | |||
7 | Spherical diameter | 2.5m | |||
8 | Drive mode | 1/16S | |||
13 | spherical weight | 28KG/m2 | |||
14 | brightness | ≥ 1500 cd/m2 | |||
15 | perspective | 360° | |||
16 | Visible distance | 4-40m | |||
17 | Number of grayscale bits | ≥16bits/ 4096 level | |||
18 | color | 1.67billion | |||
19 | Maximum power | 800 W/m2 | |||
20 | average power consumption | 400W/m2 | |||
21 | Power supply requirements | 110V / 220V,50-60Hz | |||
22 | frame change frequency | 60Hz | |||
23 | Refresh frequency | ≥1200Hz | |||
24 | Dimming | 0-100% | |||
26 | System correction digits | 16bits | |||
27 | color temperature | 7000-8500K | |||
29 | Input signal source | S-Video,RGB,RGBHV, YUV, YC,Composition | |||
30 | Run the system | Windows(98,2000,XP,Vin7) | |||
31 | Control System | Moser synchronization control | |||
33 | Storage temperature | (-40℃~+85℃) | |||
34 | Operating temperature | ( -20℃~+50℃ ) | |||
35 | Operating humidity | 10-90% RH | |||
36 | Whole screen life | 100,000Hours | |||
37 | downtime | 5000Hours | |||
38 | waterproof level | IP31 | |||
39 | Modular patchwork | ≦2mm | |||
40 | Pixel out-of-control rate | ≦0.0001 |
