Product Description

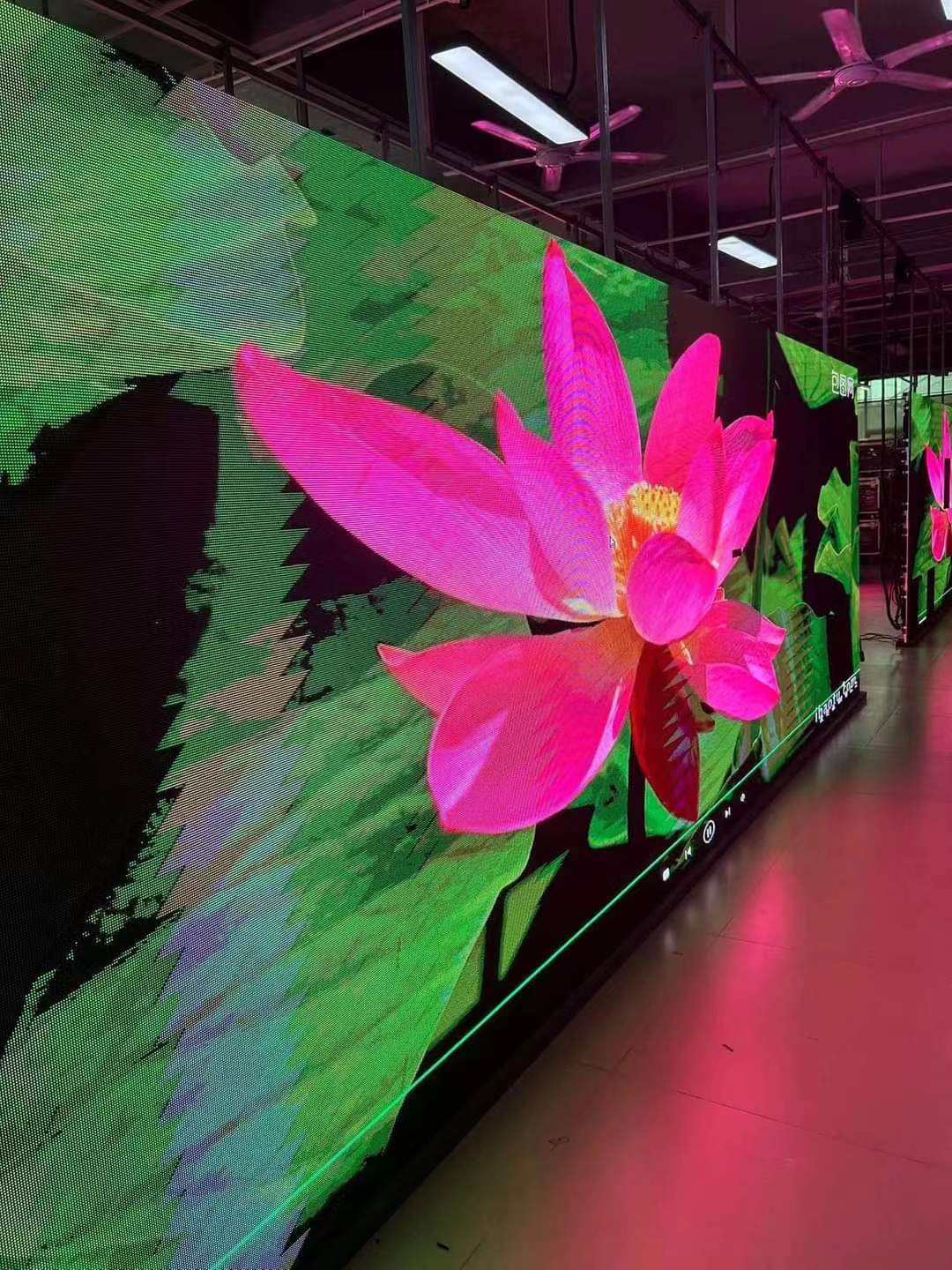

Rental LED Display
The connection methods of LED displays are diverse, providing greater convenience and flexibility for installation.
Plug Connection:
LED display modules can use plug connections, similar to power plugs. This connection method is simple and user-friendly, allowing modules to be easily inserted and connected, making installation and removal more convenient and efficient. Simply insert the modules into the corresponding slots to establish the connection, and they can be easily detached when replacement or maintenance is needed.
Magnetic Connection:
LED display modules can also utilize magnetic connections. The modules are equipped with magnetic components that allow them to be magnetically attached to each other. This connection method ensures a stable connection between modules and also facilitates module installation and removal. By bringing the modules close to each other, they will automatically magnetically attach, forming a complete display screen.
splicing techniques
Here are two common splicing techniques:
Seamless Splicing:
The module design and installation techniques of LED displays make the joints between multiple modules almost invisible. Through precise design and installation, continuity and consistency of the display can be achieved, resulting in a seamless splicing effect. This technique requires high consistency in module size and pixel density, and precise alignment and adjustment during installation to ensure the perfect presentation of the splicing effect.
Flat Display:
Special alignment and fixation methods are used between modules in LED displays to ensure flatness and consistency. This helps to avoid uneven surfaces on the display screen, ensuring smoothness and optimal viewing experience. During the installation process, precise adjustments and calibration are required to ensure precise matching of the position and angle of each module, thus achieving a flat and consistent overall display screen.
Product Advantage
The advantages and features of our LED rental screen products are as follows:
High-definition image quality:
Our LED rental screens incorporate cutting-edge display technology to deliver exceptional high-definition image quality and intricate details, ensuring a breathtaking visual experience for the audience.
Vibrant colors:
Our LED rental screens boast a broad color gamut and an impressive contrast ratio, resulting in vibrant and lifelike colors that truly captivate and engage viewers. The content displayed on these screens comes to life with unparalleled visual appeal and immersive realism.
Flexible splicing:
Our LED rental screens provide versatile splicing and combination capabilities, offering the freedom to configure them according to various venues and specific requirements. This flexibility allows for the creation of multiple display effects, ensuring a tailored visual experience that perfectly suits any setting.
Dependable stability:
The LED rental screens are built with high-quality LED chips and reliable electronic components, ensuring stable performance and long lifespan for prolonged and stable operation.
Technical Parameters
Outdoor rental led display Parameter
| Pixel Pitch(mm) | 2.604mm | 2.976mm | 3.91mm | 4.81 mm |
| LED Spec | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Apolication | Outdoor | Outdoor | Outdoor | Outdoor |
| Pixel Density(dot/m²) | 147456 dots | 112896 dots | 65536 dots | 43264 dots |
| Module Size/mm | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution | 96X96 dots | 84X84 dots | 64X64 dots | 52X52 dots |
| Module Weigh | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Scan | 1/32S | 1/28S | 1/16S | 1/13S |
| Cabinet Size/mm | 500X500mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm |
| Cabinet Resolution | 192×192 dots | 168×168 dots 168×336 dots | 128×128 dots 128×256 dots | 104x104 dots 104×208 dots |
| Cabinet Weight | 8.5 kg 15kg | 8.5 kg 15kg | 8.5 kg 15kg | 8.5 kg 15kg |
| Cabinet IP Protection | IP65 | IP65 | IP65 | IP65 |
| Brightness (cd/m²) | ≧4000-6000 nit | ≧4000-6000 nit | ≧4000-6000 nit | ≧4000-6000 nit |
| View Angle/° | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) |
| Gray Scale/bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Max Power(w/m²) | 800 W/m² | 800 W/m² | 800 W/m² | 800 W/m² |
| Average Power(w/m²) | 240 W/m² | 240 W/m² | 240 W/m² | 240 W/m² |
| Refresh Frequency/Hz | 3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Operating Voltage | AC 96~242V 50/60Hz | |||
| Operating Temperature | -20~45 °C | |||
| Operatina Humidity | 10~90%R | |||
| Operating Life | 100,000 Hours | |||
Indoor Rental LED Display Parameter
| Pixel Pitch(mm) | 3.91mm | 4.81mm | 2.604mm | 2.976mm |
| LED Spec | SMD2121 | SMD2121 | SMD1515 | SMD1515 |
| Apolication | Indoor | Indoor | Indoor | Indoor |
| Pixel Density(dot/m²) | 65536 dots | 43264 dots | 147456 dots | 112896 dots |
| Module Size/mm | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution | 64X64 dots | 52X52 dots | 96X96 dots | 84X84 dots |
| Module Weigh | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Scan | 1/16S | 1/13S | 1/32S | 1/28S |
| Cabinet Size/mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm |
| Cabinet Resolution | 128×128 dots 128×256 dots | 104×104 dots 104×208 dots | 192×192 dots 192×384 dots | 168x168 dots 168×336 dots |
| Cabinet Weight | 7.5 kg 14kg | 7.5 kg 14kg | 7.5 kg 14kg | 7.5 kg 14kg |
| Cabinet IP Protection | IP24 | IP24 | IP24 | IP24 |
| Brightness (cd/m²) | ≧600-800 nit | ≧600-800 nit | ≧600-800 nit | ≧600-800 nit |
| View Angle/° | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) |
| Gray Scale/bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Max Power(w/m²) | 650 W/m² | 650 W/m² | 650 W/m² | 650 W/m² |
| Average Power(w/m²) | 195 W/m² | 195 W/m² | 195 W/m² | 195 W/m² |
| Refresh Frequency/Hz | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Operating Voltage | AC 96~242V 50/61Hz | AC 96~242V 50/62Hz | ||
| Operating Temperature | -20~45 °C | -20~46 °C | ||
| Operatina Humidity | 10~90%RH | 10~90%RH | ||
| Operating Life | 100,000 Hours | 100,001 Hours | ||
Product Uses
LED rental screens have specific applications in the following scenarios:
Concerts and Music Festivals:
Trade Shows and Exhibitions:
Sporting Events:
Corporate Events and Conferences:
Weddings and Social Gatherings:
Retail and Advertising:
Public Spaces and Outdoor Events:
Theatrical Productions and Stage Performances:
FAQ
1. What types of LED displays does your company offer?
Our company offers a wide range of LED displays, including indoor displays, outdoor displays, transparent displays, curved displays, and more. We can customize the size, resolution, and specifications to meet specific project requirements.
2. What industries do you serve with your LED displays?
We cater to various industries, including retail, advertising, sports, entertainment, transportation, hospitality, and more. Our LED displays are versatile and can be tailored to suit different applications and environments.
3. Are your LED displays energy-efficient?
Absolutely! Our LED displays are designed with energy efficiency in mind. We utilize advanced LED technology and power-saving features to minimize energy consumption without compromising on display quality and brightness.
