P2.5 P3 P4 P3.91 P4.81 P5 P6
Good Display
RGB
1 year
Kinglight
| Quantity: | |
|---|---|
Product Description

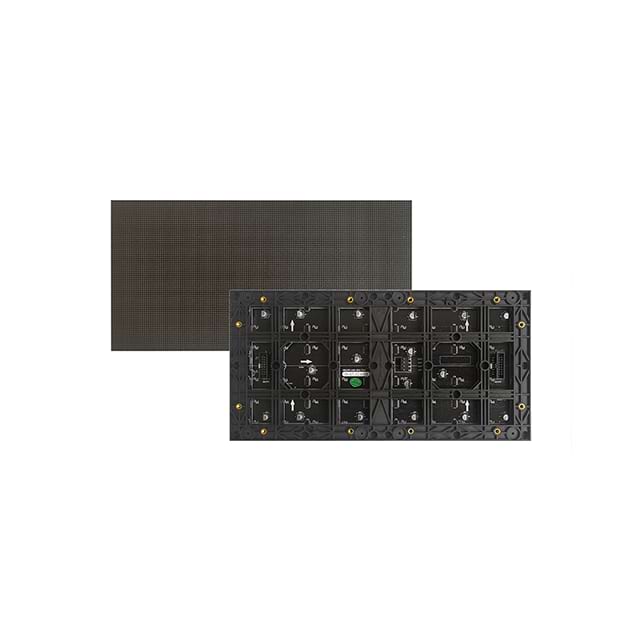

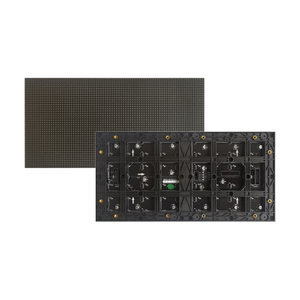

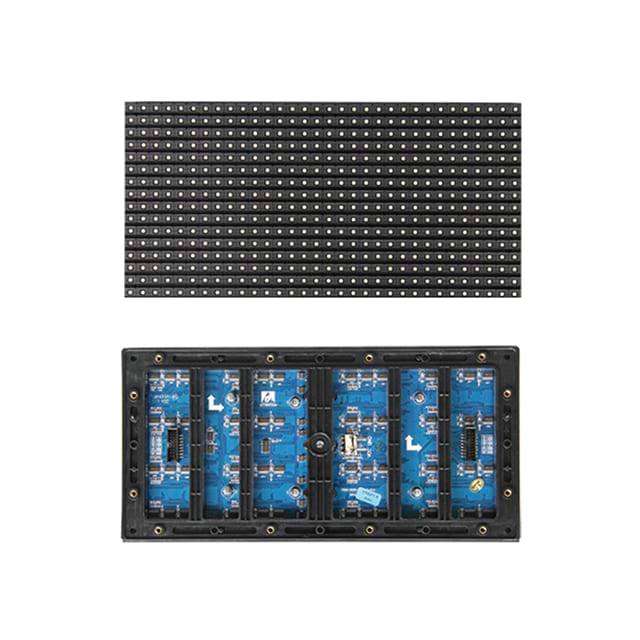

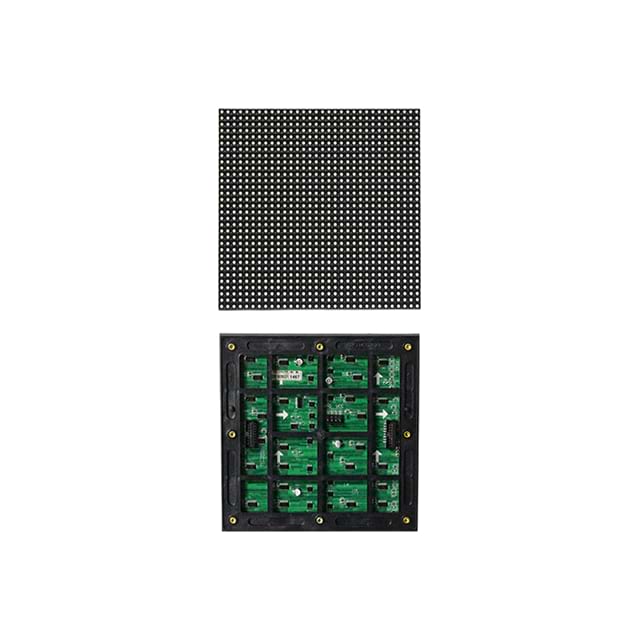

LED modules
The wide viewing angle range of LED displays is one of their major advantages. Traditional LCD displays often suffer from issues such as color shifting, decreased contrast, and image distortion when viewed from different angles, whereas LED displays excel in this aspect.
The broad viewing angle range of LED displays is determined by their unique construction and operating principles. LED displays are composed of numerous small light-emitting diodes (LED), each serving as an independent light-emitting unit. These LEDs are distributed across the entire panel of the display and emit light by controlling the current flowing through them.
Since the light-emitting units of LED displays are spread throughout the screen, viewers can observe the display from various angles without experiencing color distortion or decreased contrast. This means that whether viewers are facing the screen directly, viewing from the sides, or from above or below, they can obtain clear and accurate image and color representation.

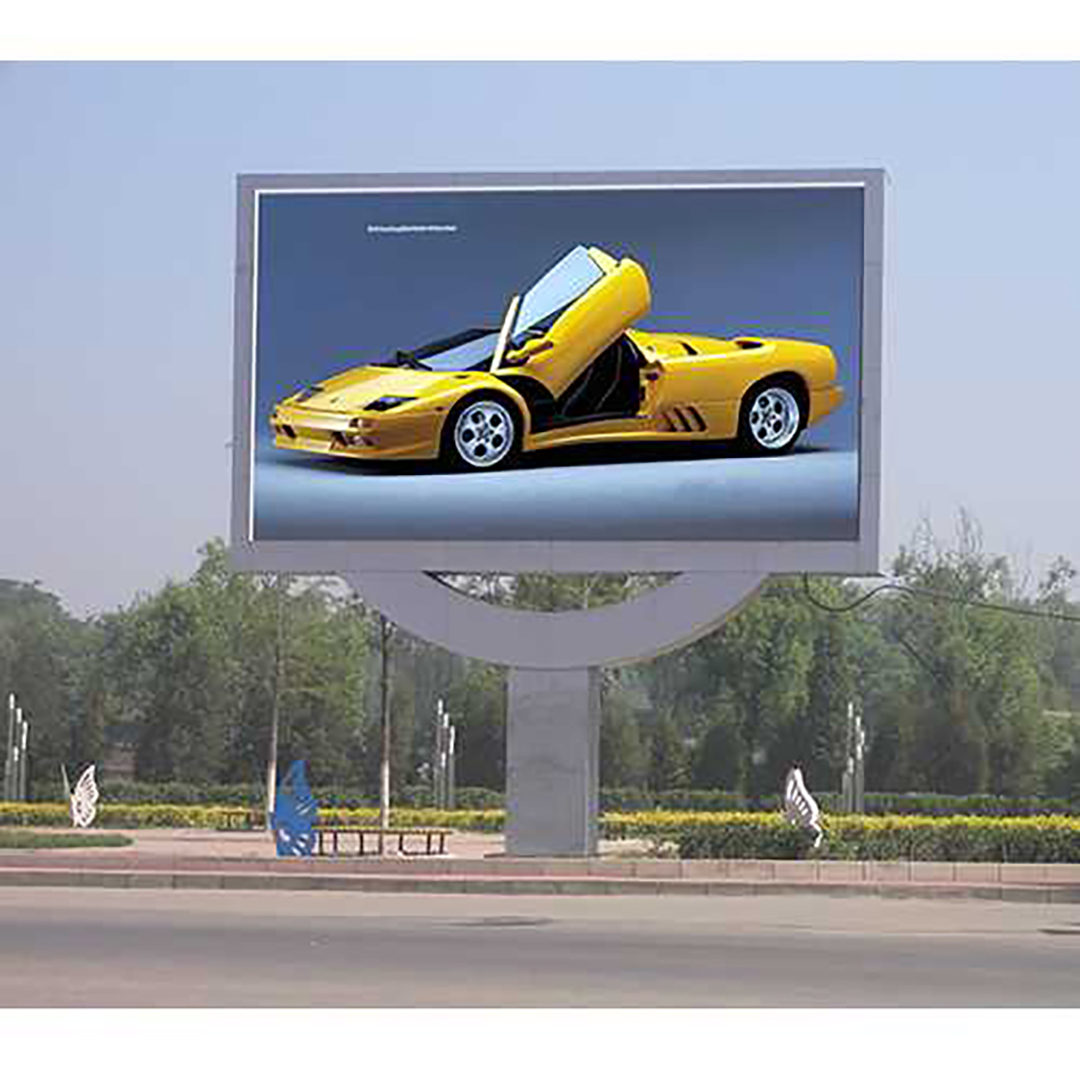

The viewing angle of LED displays typically reaches approximately 160 degrees or even greater in both the horizontal and vertical directions. This allows viewers to move freely within a larger range without compromising the image quality. This is particularly important for large-scale performances, sports events, commercial displays, and other scenarios that require a wide viewing area, as viewers can have the same visual experience from different positions.
It is worth noting that although LED displays offer a wide viewing angle range, slight color shifting or decreased contrast may still occur at extreme angles. Therefore, when selecting and installing LED displays, it is important to consider the viewing positions and angles of the audience to achieve the best visual effect.
Product Advantage
LED indoor and outdoor module products have the following features and advantages:
Highly customizable

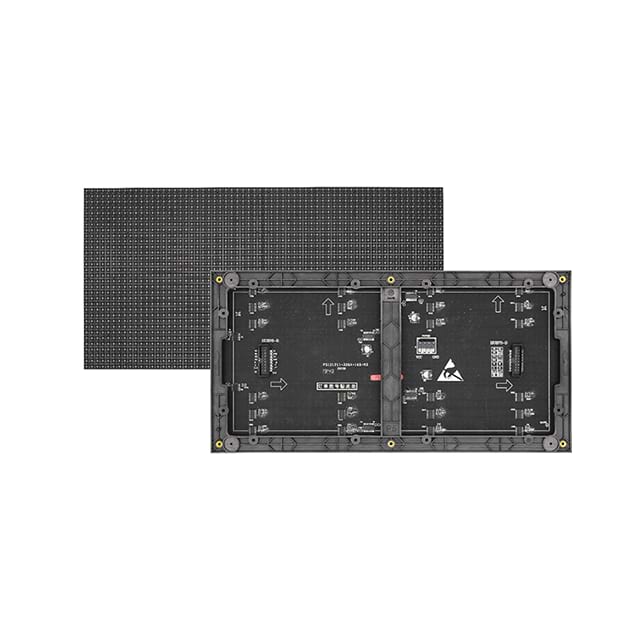

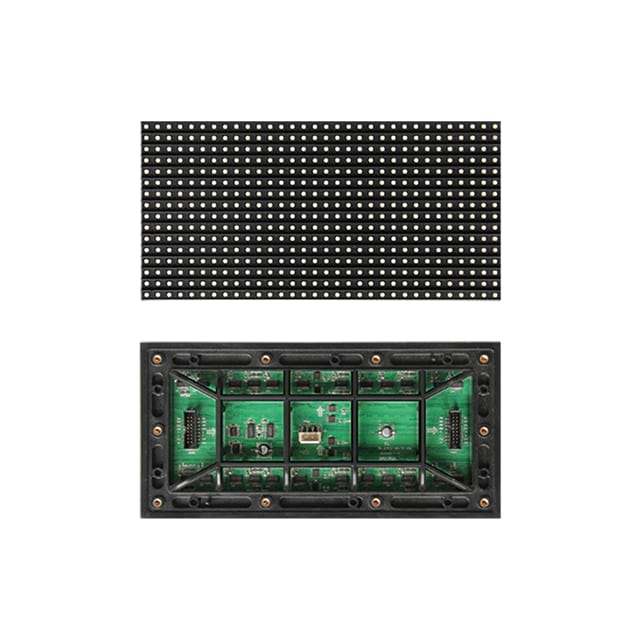

LED display modules are composed of multiple LED modules, and each module usually contains multiple LED lamp beads. This modular design allows the size and shape of the LED display to be flexibly adjusted and customized according to needs. Modularity also makes it easier to repair and replace individual modules.
Easy to install and remove
LED display modules usually use magnetic or plug-in connections, making the installation and removal process easier and faster. This design allows the LED display to be easily assembled and disassembled, making it suitable for different installation locations and needs.
High brightness and adjustability
The LED display module uses LED lamp beads as the light source, which has high brightness and high contrast, and can provide clearly visible images and content in bright environments. In addition, the brightness of the LED display can usually be adjusted by adjusting the current of the LED lamp beads to adapt to different environments and needs.
Energy saving and environmental protection
LED display modules use LED as the light source. Compared with traditional lighting and display technology, LED has higher energy efficiency and lower energy consumption. The use of LED display modules can save energy and reduce environmental impact.
Technical Parameters
| LED | SMD 1921 | SMD 2727 | SMD 2727/3535 | SMD 3535 | SMD 3535 | SMD 3535 |
| Pixel Density (dot/m²) | 62500 | 40000 | 27777 | 15625 | 10000 | 3906 |
| Module Resolution (dots) | 64x32 | 64×32 | 32×32 | 32x16 | 32x16 | 16x16 |
| Module Size(mm) | 256×128×15.2 | 320×160×17 | 192×192×20 | 256x128×23 | 320×160×23 | 256x256×23 |
| Color Temperature | 9500K | 9500K | 9500K | 9500K | 9500K | 9500K |
| Drive Mode | Constant current drive | Constant current drive | Constant current drive | Constant current drive | Constant current drive | Constant current drive |
| Scanning Method(S) | (1/6) | (1/8) | (1/8) | (1/4) | (1/4) | Static scan |
| Brightness(cd/m²) | ≥6000 | ≥5000 | ≥4500 | ≥5000 | ≥4500 | ≥6000 |
| Application Environment | outdoor | outdoor | outdoor | outdoor | outdoor | outdoor |
| Best Viewing Distance(m) | ≥4 | ≥5 | ≥6 | ≥8 | ≥10 | ≥16 |
| Refresh Frequency(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Perspective(°) | ≦140 | ≦120 | ≦120 | ≦120 | ≦120 | ≦120 |
| Operating Voltage(V) | DC5V+10% | DC5V+10% | DC5V+10% | DC5V+10% | DC5V+10% | DC5V+10% |
| Brightness Adjustment range | 0 to 255 Adjustable | 0 to 256 Adjustable | 0 to 257 Adjustable | 0 to 258 Adjustable | 0 to 259 Adjustable | 0 to 260 Adjustable |
| Working Life(H) | 100000 HOURS | 100001 HOURS | 100002 HOURS | 100003 HOURS | 100004 HOURS | 100005 HOURS |
Product Uses
LED modules have a wide range of applications in various fields. Here are several common application areas
Commercial Display
LED display modules can be used for product display and information presentation in places such as shopping malls, exhibitions, and museums. Through high-definition image and video display, LED displays can highlight product features and attract customers' attention.
Sports Stadiums
LED display modules are widely used in sports stadiums and sports venues to display live game updates, scores, timers, advertisements, and sponsor information. The high brightness and clarity ensure that the audience can clearly see the displayed content, enhancing the viewing experience.
Stage Performances
LED display modules are often used as backdrops and visual effects in stage performances, concerts, and music events. By displaying rich and colorful images and videos, LED displays can create a unique stage atmosphere and enhance the audience's visual enjoyment.
Traffic Signage
LED display modules can be used in traffic signage systems, such as displaying traffic information on highways or showing arrival times at bus stops.
FAQ
For our loyal customers, do we provide free air freight packaging?
Yes, we offer free air freight packaging in the form of aviation boxes for our loyal customers. We value long-term cooperation with our loyal customers and are committed to providing them with additional value and convenience.
What is the typical production time?
Our typical production time is 7-14 days. This time frame can be adjusted based on the scale and requirements of the specific order. We strive to complete orders within a reasonable time frame while ensuring product quality.
Are your LED displays energy-efficient?
Absolutely! Our LED displays are designed with energy efficiency in mind. We utilize advanced LED technology and power-saving features to minimize energy consumption without compromising on display quality and brightness.
