3.91
Good Display
die cast aluminum
RGB
500*500mm
1 year
3.91
1921
| Quantity: | |
|---|---|
Product Description

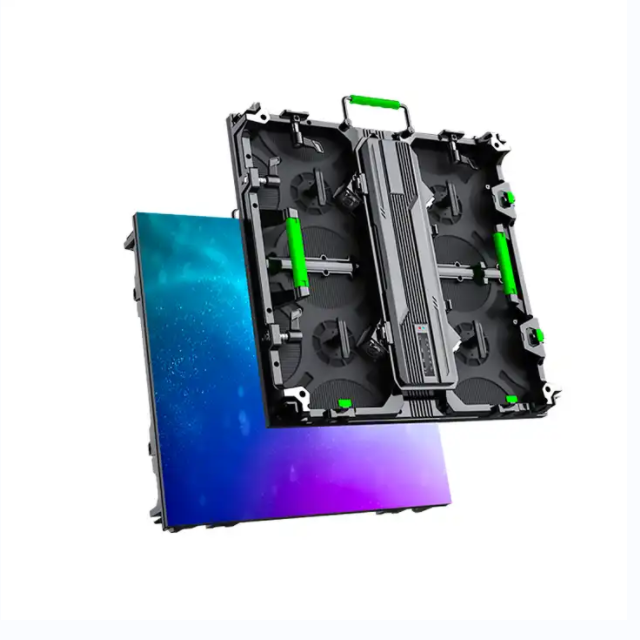

Rental LED Display
LED display control system
The signal interface of an LED display is an important bridge connecting the display and input sources to ensure compatibility with various devices.
HDMI (High-Definition Multimedia Interface):
HDMI is a digital interface widely used for high-definition video and audio transmission. LED displays equipped with HDMI interfaces can be connected to various devices, including TVs, computers, game consoles, cameras, etc. The HDMI interface supports high-quality digital audio and video transmission, providing clear and lossless images and sound.
DVI (Digital Visual Interface):
DVI is a digital interface commonly used to connect computers and display devices. LED displays equipped with DVI interfaces can be connected to computers, graphics cards, projectors, and other devices. The DVI interface supports high-quality digital video transmission, delivering clear and detailed images.
VGA (Video Graphics Array):
VGA is an analog interface commonly used to connect computers and display devices. Although VGA is an analog signal interface, it is still widely used in many devices and monitors. LED displays equipped with VGA interfaces can be connected to various devices such as computers, laptops, transmitting analog video signals. VGA interfaces are typically suitable for older devices or situations where long-distance transmission is required.
DisplayPort:
DisplayPort is a digital interface used to connect computers and display devices. LED displays equipped with DisplayPort interfaces can be connected to computers, graphics cards, and other devices, transmitting high-quality digital video and audio signals. DisplayPort interfaces support high resolutions, high refresh rates, and multi-monitor configurations, providing excellent image quality and performance.
In addition to the aforementioned common signal interfaces, LED displays can also provide other interfaces such as SDI (Serial Digital Interface), Component (Component Video Interface), Composite (Composite Video Interface), etc., to meet the needs of different devices and industries.
Product Advantage
LED Display Screen Advanatge
Strong customization:
LED display modules can be flexibly combined and spliced according to needs, achieving displays of various shapes and sizes to meet the requirements of different occasions.
High refresh rate:
LED displays have a high refresh rate, enabling smooth rendering of dynamic images and videos, making them suitable for scenes that require high-speed display.
High reliability:
LED display modules are made of sturdy and durable materials with a robust structural design. They have high resistance to shock, interference, and climate changes, allowing them to operate stably in various harsh environments.
Wide viewing angle:
LED displays have a wide viewing angle, maintaining image clarity and color accuracy from multiple perspectives. This ensures that viewers can enjoy a good visual experience regardless of their position.
Technical Parameters
Outdoor rental led display Parameter
| Pixel Pitch(mm) | 2.604mm | 2.976mm | 3.91mm | 4.81 mm |
| LED Spec | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Apolication | Outdoor | Outdoor | Outdoor | Outdoor |
| Pixel Density(dot/m²) | 147456 dots | 112896 dots | 65536 dots | 43264 dots |
| Module Size/mm | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution | 96X96 dots | 84X84 dots | 64X64 dots | 52X52 dots |
| Module Weigh | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Scan | 1/32S | 1/28S | 1/16S | 1/13S |

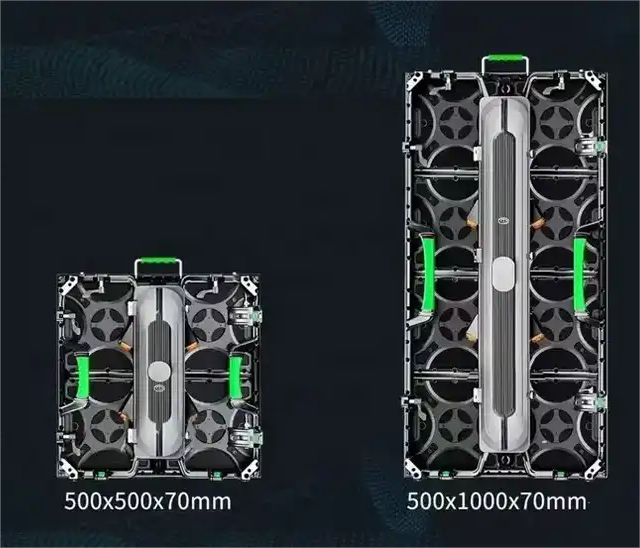

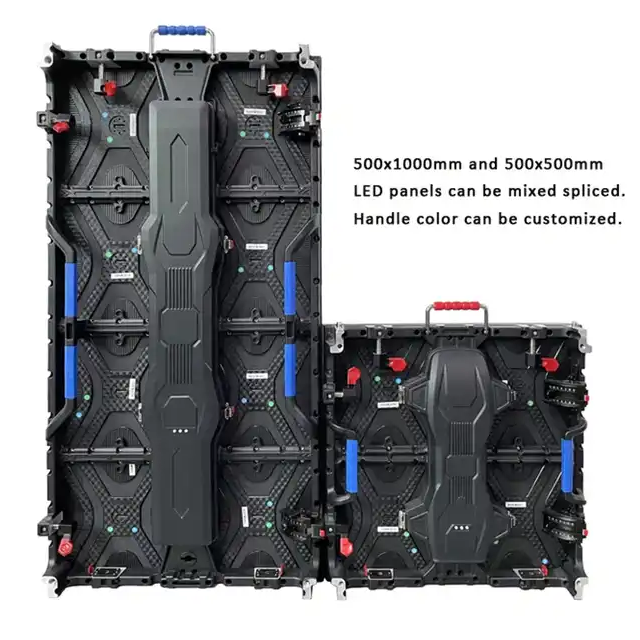

| Cabinet Size/mm | 500X500mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm |
| Cabinet Resolution | 192×192 dots | 168×168 dots 168×336 dots | 128×128 dots 128×256 dots | 104x104 dots 104×208 dots |
| Cabinet Weight | 8.5 kg 15kg | 8.5 kg 15kg | 8.5 kg 15kg | 8.5 kg 15kg |
| Cabinet IP Protection | IP65 | IP65 | IP65 | IP65 |
| Brightness (cd/m²) | ≧4000-6000 nit | ≧4000-6000 nit | ≧4000-6000 nit | ≧4000-6000 nit |
| View Angle/° | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) |
| Gray Scale/bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Max Power(w/m²) | 800 W/m² | 800 W/m² | 800 W/m² | 800 W/m² |
| Average Power(w/m²) | 240 W/m² | 240 W/m² | 240 W/m² | 240 W/m² |
| Refresh Frequency/Hz | 3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Operating Voltage | AC 96~242V 50/60Hz | |||
| Operating Temperature | -20~45 °C | |||
| Operatina Humidity | 10~90%R | |||
| Operating Life | 100,000 Hours | |||
Indoor Rental LED Display Parameter
| Pixel Pitch(mm) | 3.91mm | 4.81mm | 2.604mm | 2.976mm |
| LED Spec | SMD2121 | SMD2121 | SMD1515 | SMD1515 |
| Apolication | Indoor | Indoor | Indoor | Indoor |
| Pixel Density(dot/m²) | 65536 dots | 43264 dots | 147456 dots | 112896 dots |
| Module Size/mm | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution | 64X64 dots | 52X52 dots | 96X96 dots | 84X84 dots |
| Module Weigh | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Scan | 1/16S | 1/13S | 1/32S | 1/28S |
| Cabinet Size/mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm |
| Cabinet Resolution | 128×128 dots 128×256 dots | 104×104 dots 104×208 dots | 192×192 dots 192×384 dots | 168x168 dots 168×336 dots |
| Cabinet Weight | 7.5 kg 14kg | 7.5 kg 14kg | 7.5 kg 14kg | 7.5 kg 14kg |
| Cabinet IP Protection | IP24 | IP24 | IP24 | IP24 |
| Brightness (cd/m²) | ≧600-800 nit | ≧600-800 nit | ≧600-800 nit | ≧600-800 nit |
| View Angle/° | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) |
| Gray Scale/bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Max Power(w/m²) | 650 W/m² | 650 W/m² | 650 W/m² | 650 W/m² |
| Average Power(w/m²) | 195 W/m² | 195 W/m² | 195 W/m² | 195 W/m² |
| Refresh Frequency/Hz | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Operating Voltage | AC 96~242V 50/61Hz | AC 96~242V 50/62Hz | ||
| Operating Temperature | -20~45 °C | -20~46 °C | ||
| Operatina Humidity | 10~90%RH | 10~90%RH | ||
| Operating Life | 100,000 Hours | 100,001 Hours | ||
Product Uses
LED rental screens have specific applications in the following scenarios:
Concerts and Music Festivals:
Trade Shows and Exhibitions:
Sporting Events:
Corporate Events and Conferences:
Weddings and Social Gatherings:
Retail and Advertising:

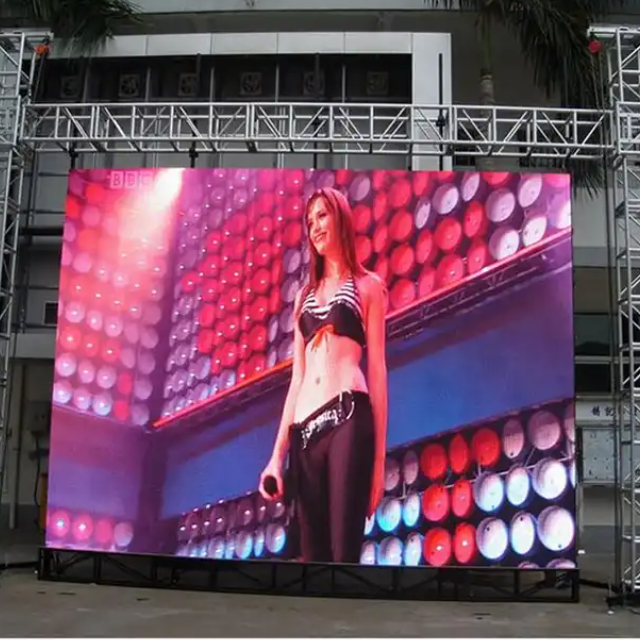

Public Spaces and Outdoor Events:
Theatrical Productions and Stage Performances:
FAQ
1. What types of LED displays does your company offer?
Our company offers a wide range of LED displays, including indoor displays, outdoor displays, transparent displays, curved displays, and more. We can customize the size, resolution, and specifications to meet specific project requirements.
2. What industries do you serve with your LED displays?
We cater to various industries, including retail, advertising, sports, entertainment, transportation, hospitality, and more. Our LED displays are versatile and can be tailored to suit different applications and environments.
3. Are your LED displays energy-efficient?
Absolutely! Our LED displays are designed with energy efficiency in mind. We utilize advanced LED technology and power-saving features to minimize energy consumption without compromising on display quality and brightness.
