Product Description
LED transparent display
LED display screens have excellent reliability and durability, which are determined by multiple factors in their design and manufacturing process.
LED chip lifespan
The LED chips used in LED display screens have long lifespan characteristics. The lifespan of LED chips is typically measured in hours and can reach tens of thousands to hundreds of thousands of hours or even longer. This means that LED display screens can maintain stable brightness and performance over long periods of use, reducing the frequency of chip replacement and maintenance costs.
Quality control and material selection
Manufacturing high-quality LED display screens requires strict quality control and material selection. Excellent LED display screen manufacturers will choose high-quality LED chips, electronic components, and other key parts to ensure product reliability and durability. Advanced manufacturing processes and technologies are also employed to ensure product stability and consistency.
Structural design and protective measures
The structural design and protective measures of LED display screens play an important role in their reliability and durability. Well-designed structures provide stable support and protection, preventing external impact and vibration from affecting the display screen. Additionally, measures such as dustproofing, waterproofing, and corrosion resistance can protect the screen from damage in harsh environments.
Thermal management system
LED display screens generate heat during operation, and a good thermal management system can effectively dissipate heat, maintaining the stability and reliability of the display screen. This can be achieved through components such as heat sinks, fans, and heat dissipation plates, ensuring that the LED display screen does not overheat during prolonged operation.
Durability testing and certification
Excellent LED display screen manufacturers subject their products to rigorous durability testing and certification. These tests include temperature variation testing, humidity testing, shock resistance testing, wind resistance testing, etc., to ensure the stability and reliability of the display screen under various environmental conditions. Additionally, some manufacturers obtain relevant certifications such as CE certification, RoHS certification, etc., to demonstrate that their products meet international standards and quality requirements.
LED display screens have high reliability and durability, maintaining stable performance and quality over long periods of use. However, to ensure the reliability and durability of LED display screens, users also need to follow proper operation and maintenance guidelines, such as avoiding excessive use, regular cleaning and maintenance, etc., to extend the lifespan of the display screen.
Product Advantage
LED transparent screens are an advanced display technology with multiple advantages and features.
High refresh rate
LED display screens have a high refresh rate, which allows them to refresh images at a faster speed, reducing screen flickering and blurring, and providing a smoother visual experience. This is particularly important for viewing dynamic content and fast-moving images, such as sports events and video games.
Wide viewing angles
LED display screens have wide viewing angles, meaning that the image remains clear and visible even when viewed from larger angles, without color distortion or reduced brightness. This allows multiple viewers to enjoy the same high-quality visual experience simultaneously.
Lightweight and portable
LED display screens are designed to be lightweight and thin, making them easy to install and carry. This makes LED display screens highly convenient for situations that require frequent movement or temporary setups, such as exhibitions and concerts.
Multiple color options
LED display screens can present a wide range of vibrant colors, with good color saturation and accuracy. This enables LED display screens to display more realistic and vivid color effects when showcasing colorful images and video content.
Advanced image processing technology
LED display screens are equipped with advanced image processing technology, which optimizes and enhances the input images, improving clarity, contrast, and color balance. This ensures that LED display screens can present high-quality images and video content.
Technical Parameters
P3.91-7.82 Transparent LED display specification
| Number | LED Composition | Type |
| 1 | SMD | SMD2020 |
| 2 | Brand | Kingnight |
| 3 | Pixel Pitch | P3.91-7.82mm |
| 4 | Driver IC | Chipone 2153 |
| 5 | Driver Mode | 8 Scan |
| 6 | ModuleResolution | 128*16dots |
| 7 | Cabinet Size (width x) | 1000×1000mm |
| 8 | Cabinet Resolution | 256×128dots |
| 9 | Transmittance | ≥70% |
| 10 | Module Quantity | 16pcs |
| 11 | Pixel Density | 327684点/m² |
| 12 | Material | Profile |
| 13 | Cabinet Weight | 12KG |
| 14 | Brightness | 4500 |
| 15 | Perspective | 140° horizontally |
| 16 | Minimum Viewing | ≥3m |
| 17 | Grayscale | 16bit |
| 18 | Refresh Rate | ≥3840HZ |
| 19 | Frame Change Frequency | 60fps |
| 20 | Input Voltage | DC5-3.5V/AC85 |
| 21 | Power Consumption | 800/200W/m² |
| 22 | Screen Weight | 12kg/m² |
| 23 | Mean TimeBetween | > 10.000 hours |
| 24 | Ifetime | ≥100.000 hours |
| 25 | IP Protection Level | Not waterproof |
| 26 | Temperature | -40°C ~ +40°C |
| 27 | Humidity | 15%-90%RH |
| 28 | Maintenance Method | Pre-maintenance |
| 29 | Installation Method | Fixed installation |
| 30 | Operating System | Nova |
Product Uses
Here are some specific application scenarios:
1. Retail Displays:
LED transparent screens offer an innovative solution for captivating product displays in stores. By integrating them into storefront windows, products and store interiors are visible, creating an enticing visual experience for passersby.
2. Advertising:
LED transparent screens are highly effective for advertising in public spaces. Installed strategically, they showcase dynamic ads while maintaining visibility, attracting attention and engagement.
3. Exhibitions and Events:
LED transparent screens are widely used in exhibitions to present information, brand messages, and interactive content. They create immersive experiences as digital signage, video walls, or stage backdrops.

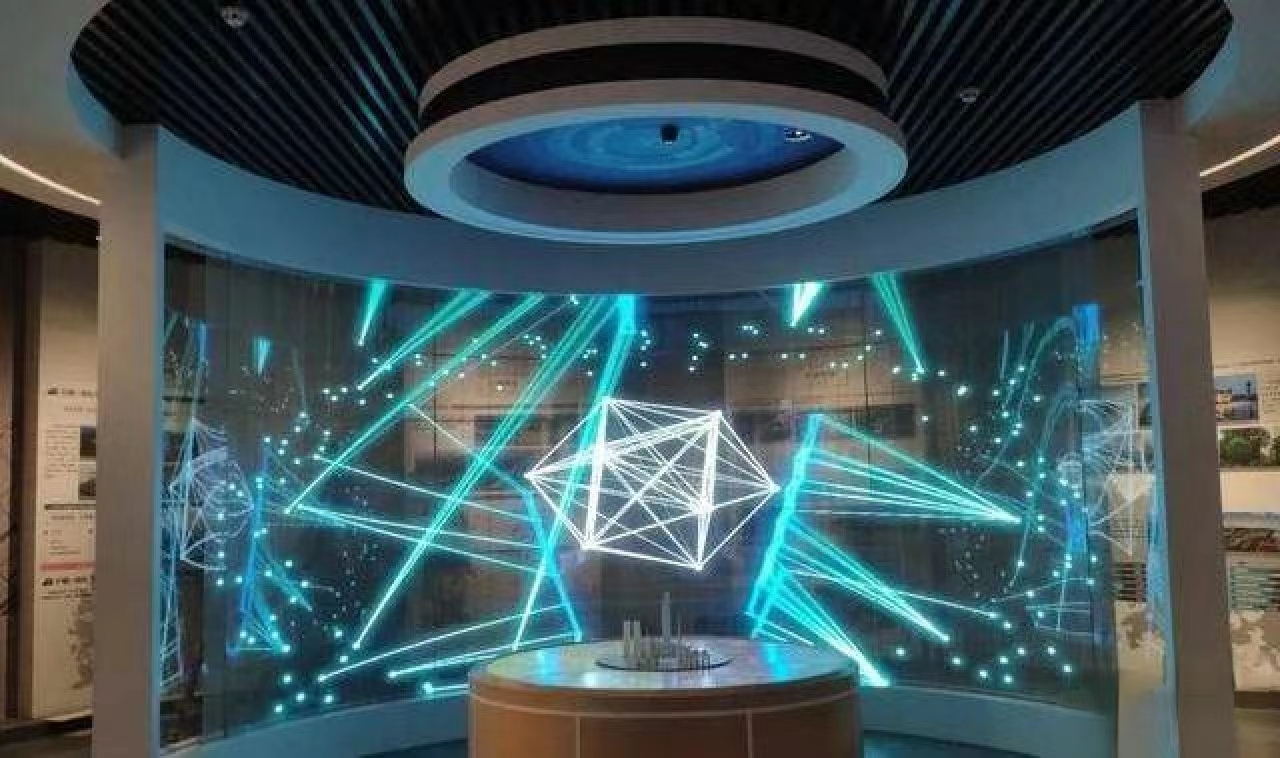

4. Museums and Galleries:
LED transparent screens enhance viewing in museums and galleries. They display exhibit information, offer interactivity, and create captivating multimedia presentations, enriching the ambiance and engagement.
FAQ
1. What types of LED displays does your company offer?
Our company offers a wide range of LED displays, including indoor displays, outdoor displays, transparent displays, curved displays, and more. We can customize the size, resolution, and specifications to meet specific project requirements.
2. What is the typical production time?
Our typical production time is 7-14 days. This time frame can be adjusted based on the scale and requirements of the specific order. We strive to complete orders within a reasonable time frame while ensuring product quality.
3. Do we support customization services?
Yes, we support customization services. We understand that each customer's needs may be different, so we provide customized LED display solutions, including customization of size, resolution, shape, and other specifications. 7.How is the shipping fee calculated?
