Product Description
Specifications of LED Rental Screens
Length and Width:
The module size of LED rental displays is typically expressed in millimeters (mm). The dimensions of the screen length and width can be adjusted according to the specific requirements of the client. Common LED module sizes can be 250mm x 250mm. Smaller module sizes can provide higher resolution and image detail, while larger module sizes are suitable for occasions that require a larger display area. Well-designed module sizes facilitate installation and assembly, improving the overall stability and reliability of the LED display.
Thickness:
The module thickness of LED rental displays usually ranges from 10mm to 30mm, and the specific dimensions may vary depending on the manufacturer and product series. Thinner modules offer a more lightweight structure and better heat dissipation, making them suitable for installations in limited spaces. Thicker modules provide better structural strength and heat dissipation capabilities, making them suitable for large-scale and high-brightness displays. A well-designed module thickness ensures the stability and reliability of the display and facilitates maintenance and repair.
During the module design process of LED displays, manufacturers typically take into account the convenience of installation and maintenance.

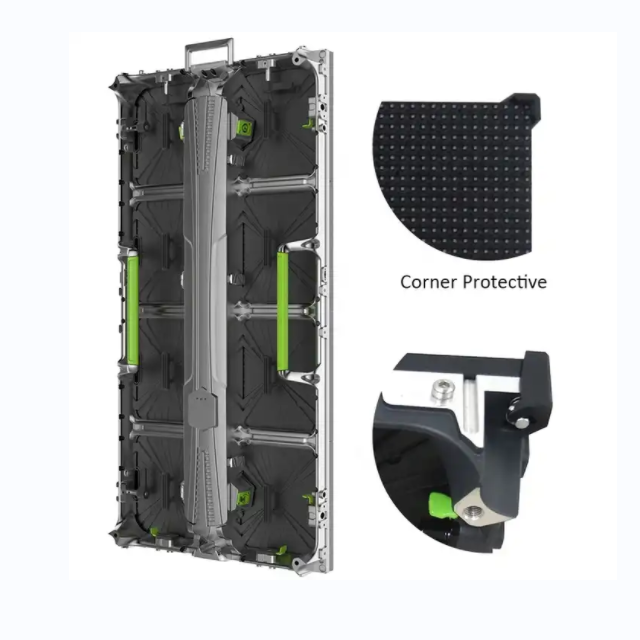

Module Connections:
LED display modules often utilize standardized connection methods such as magnetic attachment, plug and socket connections, or screw fastening. Such designs facilitate easy installation and removal of modules, reducing time and cost for maintenance and repairs.
Overall Structural Design:
The module design of LED displays typically considers the consistency and stability of the entire screen structure. The alignment and fixation methods between modules ensure a smooth display surface and continuous images. Additionally, well-designed heat dissipation and dust-proof features can prolong the lifespan of the display and reduce the frequency of maintenance.
Product Advantage
The advantages and features of our LED rental screen products
1. High-definition image quality:
Through the utilization of cutting-edge display technology, our LED rental screens go above and beyond, surpassing all expectations by providing unmatched high-definition image quality and intricate detail. The outcome is an absolutely captivating visual experience that effortlessly captivates the audience, leaving a lasting impression that lingers even after the event comes to a close.
2. Vibrant colors:
With an expansive color spectrum and an astonishing contrast ratio, our LED rental screens showcase vibrant and lifelike colors, elevating the displayed content to unparalleled levels of engagement and captivation. The vivid and realistic color reproduction ensures an immersive visual experience that deeply resonates with the audience, forging a lasting impact that extends far beyond the conclusion of the event.
3. Flexible splicing:
With the ability to seamlessly splice and combine, our LED rental screens provide effortless customization to accommodate various venues and specific needs. This remarkable flexibility empowers users to create a wide array of display effects, effortlessly adapting to different environments and delivering captivating visual presentations that leave an indelible mark. Equipped with this exceptional adaptability, our LED rental screens ensure a truly mesmerizing visual experience that resonates long after the event concludes.
Technical Parameters
Outdoor rental led display Parameter
| Pixel Pitch(mm) | 2.604mm | 2.976mm | 3.91mm | 4.81 mm |
| LED Spec | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Apolication | Outdoor | Outdoor | Outdoor | Outdoor |
| Pixel Density(dot/m²) | 147456 dots | 112896 dots | 65536 dots | 43264 dots |
| Module Size/mm | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution | 96X96 dots | 84X84 dots | 64X64 dots | 52X52 dots |
| Module Weigh | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Scan | 1/32S | 1/28S | 1/16S | 1/13S |
| Cabinet Size/mm | 500X500mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm |
| Cabinet Resolution | 192×192 dots | 168×168 dots 168×336 dots | 128×128 dots 128×256 dots | 104x104 dots 104×208 dots |
| Cabinet Weight | 8.5 kg 15kg | 8.5 kg 15kg | 8.5 kg 15kg | 8.5 kg 15kg |
| Cabinet IP Protection | IP65 | IP65 | IP65 | IP65 |
| Brightness (cd/m²) | ≧4000-6000 nit | ≧4000-6000 nit | ≧4000-6000 nit | ≧4000-6000 nit |
| View Angle/° | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) |
| Gray Scale/bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Max Power(w/m²) | 800 W/m² | 800 W/m² | 800 W/m² | 800 W/m² |
| Average Power(w/m²) | 240 W/m² | 240 W/m² | 240 W/m² | 240 W/m² |
| Refresh Frequency/Hz | 3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Operating Voltage | AC 96~242V 50/60Hz | |||
| Operating Temperature | -20~45 °C | |||
| Operatina Humidity | 10~90%R | |||
| Operating Life | 100,000 Hours | |||
Indoor Rental LED Display Parameter
| Pixel Pitch(mm) | 3.91mm | 4.81mm | 2.604mm | 2.976mm |
| LED Spec | SMD2121 | SMD2121 | SMD1515 | SMD1515 |
| Apolication | Indoor | Indoor | Indoor | Indoor |
| Pixel Density(dot/m²) | 65536 dots | 43264 dots | 147456 dots | 112896 dots |
| Module Size/mm | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution | 64X64 dots | 52X52 dots | 96X96 dots | 84X84 dots |
| Module Weigh | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Scan | 1/16S | 1/13S | 1/32S | 1/28S |
| Cabinet Size/mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm |
| Cabinet Resolution | 128×128 dots 128×256 dots | 104×104 dots 104×208 dots | 192×192 dots 192×384 dots | 168x168 dots 168×336 dots |
| Cabinet Weight | 7.5 kg 14kg | 7.5 kg 14kg | 7.5 kg 14kg | 7.5 kg 14kg |
| Cabinet IP Protection | IP24 | IP24 | IP24 | IP24 |
| Brightness (cd/m²) | ≧600-800 nit | ≧600-800 nit | ≧600-800 nit | ≧600-800 nit |
| View Angle/° | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) |
| Gray Scale/bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Max Power(w/m²) | 650 W/m² | 650 W/m² | 650 W/m² | 650 W/m² |
| Average Power(w/m²) | 195 W/m² | 195 W/m² | 195 W/m² | 195 W/m² |
| Refresh Frequency/Hz | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Operating Voltage | AC 96~242V 50/61Hz | AC 96~242V 50/62Hz | ||
| Operating Temperature | -20~45 °C | -20~46 °C | ||
| Operatina Humidity | 10~90%RH | 10~90%RH | ||
| Operating Life | 100,000 Hours | 100,001 Hours | ||
Product Uses
LED rental screens have specific applications in the following scenarios:
Concerts and Music Festivals:
Trade Shows and Exhibitions:
Sporting Events:
Corporate Events and Conferences:
Weddings and Social Gatherings:
Retail and Advertising:
Public Spaces and Outdoor Events:
Theatrical Productions and Stage Performances:
FAQ
1. What types of LED displays does your company offer?
At our company, we provide an extensive selection of LED displays, encompassing indoor displays, outdoor displays, transparent displays, curved displays, and more. Our offerings can be tailored to meet specific project requirements, allowing for customization in terms of size, resolution, and specifications. This ensures that our clients receive LED displays that perfectly align with their unique needs and vision.
2. What industries do you serve with your LED displays?
We serve a wide range of industries, such as retail, advertising, sports, entertainment, transportation, hospitality, and more. Our adaptable LED displays can be customized to meet the specific requirements of different applications and environments. This versatility ensures that our clients can effectively utilize our LED displays across various industries, delivering impactful visual experiences tailored to their specific needs.
3. Are your LED displays energy-efficient?
Certainly! Our LED displays are meticulously engineered to prioritize energy efficiency. By leveraging cutting-edge LED technology and incorporating power-saving functionalities, we minimize energy consumption while maintaining exceptional display quality and brightness. This ensures that our clients can enjoy the benefits of our LED displays without compromising on sustainability or performance.
