3.9-7.8
Good Display
Die cast aluminum
Black
500*1000mm
1year
3.9-7.8
kinglight
| Quantity: | |
|---|---|
Product Description

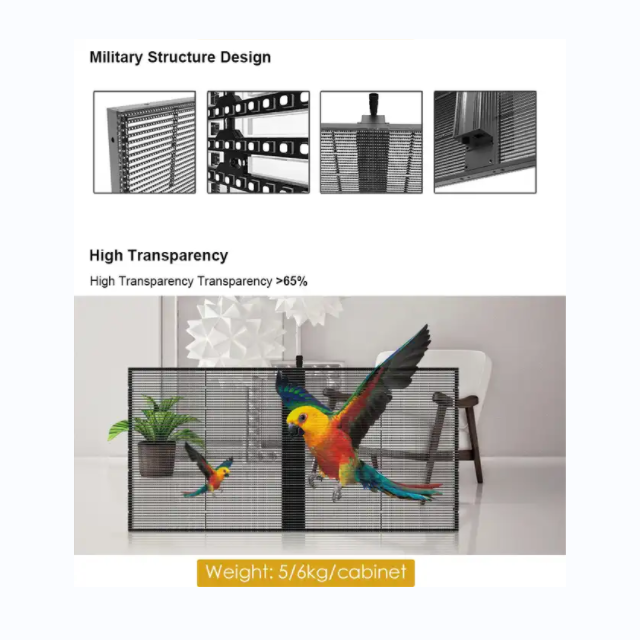

LED transparent screens
When maintaining and caring for an LED display, it is important to consider the following:
Regular cleaning
LED displays require regular cleaning to maintain optimal display performance. Gently wipe the screen surface with a soft, lint-free cloth, avoiding the use of cleaning agents that may contain chemicals that could damage the display. The cleaning frequency depends on the usage environment, but it is generally recommended to clean the display once a month or as needed.
Troubleshooting
If the LED display experiences malfunctions or abnormal behavior, first check the power and signal connections, as well as the settings parameters, to ensure they are correct. If the problem persists, refer to the user manual of the display or contact customer support for troubleshooting assistance.
Module replacement
LED displays are typically composed of multiple modules. If a module malfunctions, it can be replaced according to the design of the display. Before replacing a module, ensure that the power is disconnected and follow the relevant operation guidelines and safety regulations.
Avoid collisions and vibrations
LED displays should be protected from collisions and vibrations to prevent damage. Handle the display with care during installation and movement, avoiding excessive vibrations and impacts.
Temperature and humidity control
LED displays have specific requirements for environmental temperature and humidity. During installation and usage, avoid exposing the display to extreme temperatures or humidity levels that could affect its performance and lifespan.
In summary
the installation of an LED display requires selecting an appropriate bracket and fixing method to ensure stability and safety. During maintenance and care, regularly clean the display, pay attention to troubleshooting and module replacement guidelines to extend the display's lifespan.
Product Uses
Here are some specific application scenarios

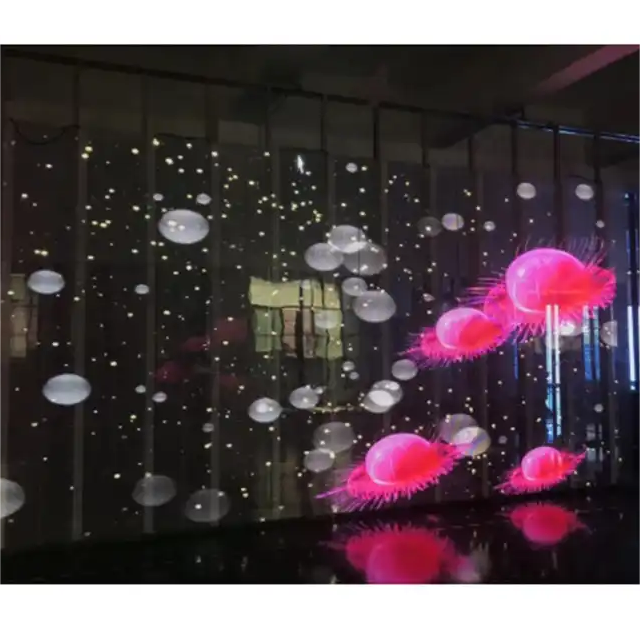

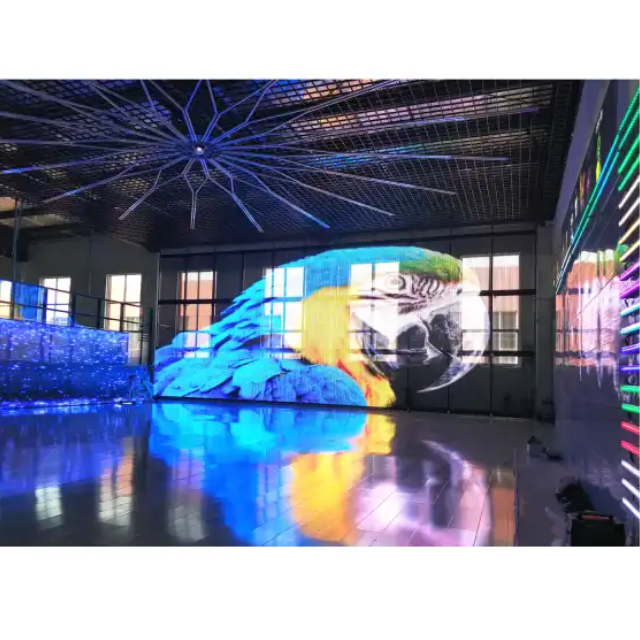

In exhibitions, LED transparent screens have become a popular choice for conveying information, brand messages, and interactive content. Whether used as digital signage, video walls, or stage backdrops, these screens offer immersive experiences and engage audiences with their versatility and captivating visual effects.
Commercial advertising & Architectural decoration & Landscape displays & Stage performances & Traffic guidance
Product Advantage
LED TRANSPARENT DISPLAY ADVANTAGE
High contrast
LED displays have high contrast, capable of presenting bright whites and deep blacks, resulting in more vivid and vibrant images. This provides better visual effects and viewing experiences.
Reliability and stability
LED displays utilize solid-state components without mechanical moving parts, resulting in higher reliability and stability. LED displays can maintain consistent performance over long periods of use and are less susceptible to external interference.
Flexibility and scalability
LED displays can be designed in flexible sizes and shapes to accommodate various locations and application requirements. Additionally, LED displays can be combined and tiled to form larger display walls, offering a broader visual experience.
Long-term return on investment
Despite higher initial investments, LED displays offer a high long-term return on investment due to their long lifespan and low maintenance costs. The stability and reliability of LED displays ensure consistent performance and benefits over extended periods of use.
Advertising effectiveness
LED displays excel in advertising and promotion due to their high brightness, clarity, and dynamic effects. By capturing attention and delivering captivating content, LED displays effectively convey advertising messages.
Technical Parameters
P3.91-7.82 Transparent LED display specification
| Number | LED Composition | Type |
| 1 | SMD | SMD2020 |
| 2 | Brand | Kingnight |
| 3 | Pixel Pitch | P3.91-7.82mm |
| 4 | Driver IC | Chipone 2153 |
| 5 | Driver Mode | 8 Scan |
| 6 | ModuleResolution | 128*16dots |
| 7 | Cabinet Size (width x) | 1000×1000mm |
| 8 | Cabinet Resolution | 256×128dots |
| 9 | Transmittance | ≥70% |
| 10 | Module Quantity | 16pcs |
| 11 | Pixel Density | 327684点/m² |
| 12 | Material | Profile |
| 13 | Cabinet Weight | 12KG |
| 14 | Brightness | 4500 |
| 15 | Perspective | 140° horizontally |
| 16 | Minimum Viewing | ≥3m |
| 17 | Grayscale | 16bit |
| 18 | Refresh Rate | ≥3840HZ |
| 19 | Frame Change Frequency | 60fps |
| 20 | Input Voltage | DC5-3.5V/AC85 |
| 21 | Power Consumption | 800/200W/m² |
| 22 | Screen Weight | 12kg/m² |
| 23 | Mean TimeBetween | > 10.000 hours |
| 24 | Ifetime | ≥100.000 hours |
| 25 | IP Protection Level | Not waterproof |
| 26 | Temperature | -40°C ~ +40°C |
| 27 | Humidity | 15%-90%RH |
| 28 | Maintenance Method | Pre-maintenance |
| 29 | Installation Method | Fixed installation |
| 30 | Operating System | Nova |
FAQ
1. What types of LED displays does your company offer?
Our company offers a wide range of LED displays, including indoor displays, outdoor displays, transparent displays, curved displays, and more. We can customize the size, resolution, and specifications to meet specific project requirements.
2. What is the typical production time?
Our standard production time is usually between 7 to 14 days. However, this timeframe can be adjusted depending on the size and specific requirements of each order. Our goal is to deliver orders within a reasonable timeframe without compromising on product quality.
3. Do we support customization services?
Certainly, we offer customization services to cater to the unique needs of our customers. We recognize that every customer may have different requirements, so we provide tailored LED display solutions, which include customization options for size, resolution, shape, and other specifications.
