3.91
Good Display
die cast aluminum
RGB
500*1000mm
1 year
3.91
Kinglight
| Quantity: | |
|---|---|
Product Description

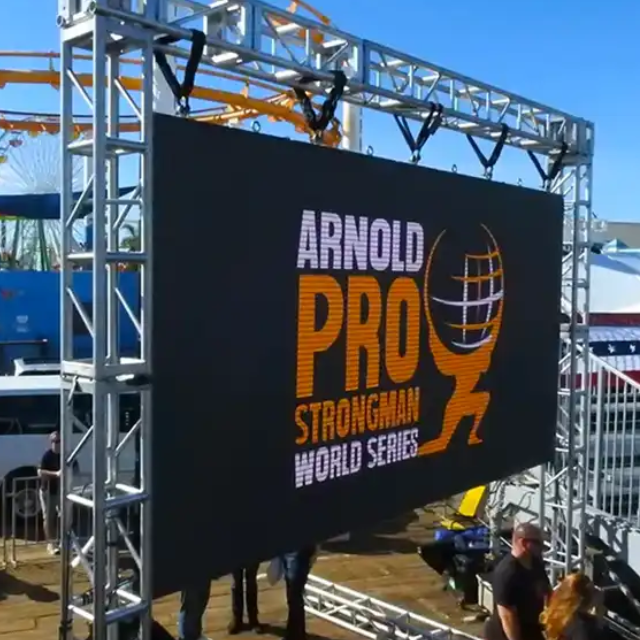

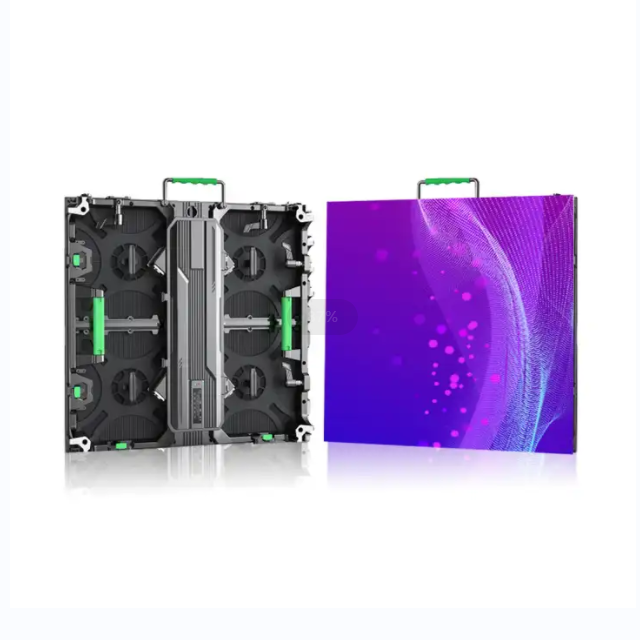

LED rental screens
Here is the translation of the steps and requirements for installing an LED display
Bracket selection
It is crucial to choose a bracket that is suitable for the size and weight of the LED display. The bracket should have sufficient stability and load-bearing capacity to ensure a secure installation of the display.
Installation position selection
Selecting an appropriate installation position is key to ensuring clear visibility of the LED display for the audience. Consider the sightlines of the viewers and the environmental conditions. Ensure that the installation position is flat, stable, and free from obstructions that may affect the viewing experience.
Fixing method
Based on the design of the bracket and the display, choose an appropriate fixing method to mount the display on the bracket. Common fixing methods include screw fixation and latch fixation. Ensure a secure fixation to prevent the display from shaking or becoming loose.
Power connection:
Connecting the display to a stable and reliable power source is crucial. Choose the appropriate power cable and socket based on the power requirements of the display. Ensure correct power connection and adhere to relevant safety regulations and electrical standards to prevent power failures or safety issues.
Signal connection:
Depending on the signal interface of the display, select the appropriate connection cable (such as HDMI, DVI, VGA, etc.) to connect the display to the input source (such as a computer, media player, etc.). Ensure a secure connection and stable signal to avoid image distortion or signal interruptions.
Adjustment and testing:
After installation, adjust the brightness, contrast, color, and other parameters of the display as needed to achieve the best image quality. Perform signal testing to ensure that the display is functioning properly and compatible with the input source. This can be done by playing a test video or using calibration tools.
By following the above steps and requirements, you can ensure a smooth installation process for the LED display and achieve the best display performance.
Product Advantage
The advantages and features of our LED rental screen products
Good readability
LED displays have excellent readability, allowing clear visibility of text and images even at a distance or smaller sizes. This makes LED displays highly useful in applications such as traffic signage and commercial signage that require long-distance readability.
Multiple installation options
LED displays can be installed using various methods such as hanging, wall mounting, and floor mounting. This versatility makes LED displays suitable for different locations and spatial constraints, providing more flexibility and options.
Adjustable brightness
LED displays can automatically adjust their brightness according to the ambient lighting conditions, ensuring optimal display performance in different lighting environments. This allows LED displays to provide a comfortable viewing experience both indoors and outdoors.
Energy-efficient
LED displays have higher energy efficiency compared to traditional display technologies, providing brighter images with lower power consumption. LEDs, as light sources, have high luminous efficiency and low energy loss, making LED displays more energy-saving.
Environmentally friendly and sustainable
LED displays do not contain harmful substances like mercury, and their materials can be recycled and reused. The energy-saving characteristics of LED displays also help reduce the demand for energy and minimize environmental impact.
Technical Parameters
Outdoor rental led display Parameter
| Pixel Pitch(mm) | 2.604mm | 2.976mm | 3.91mm | 4.81 mm |
| LED Spec | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Apolication | Outdoor | Outdoor | Outdoor | Outdoor |
| Pixel Density(dot/m²) | 147456 dots | 112896 dots | 65536 dots | 43264 dots |

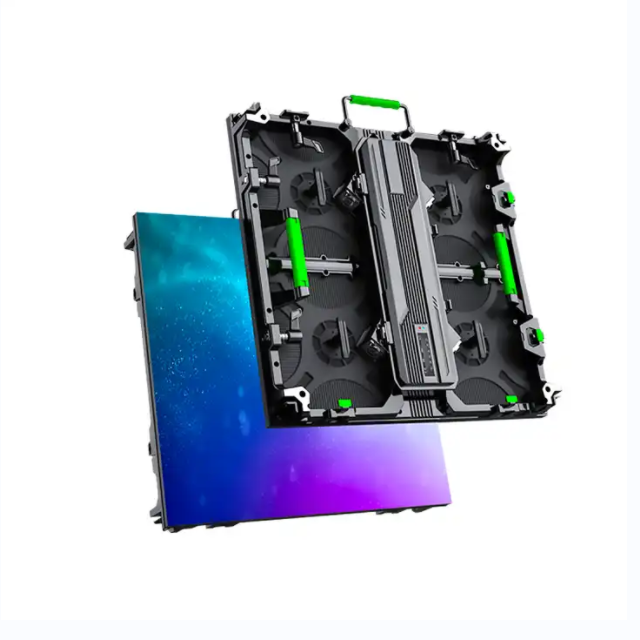

| Module Size/mm | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution | 96X96 dots | 84X84 dots | 64X64 dots | 52X52 dots |
| Module Weigh | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Scan | 1/32S | 1/28S | 1/16S | 1/13S |

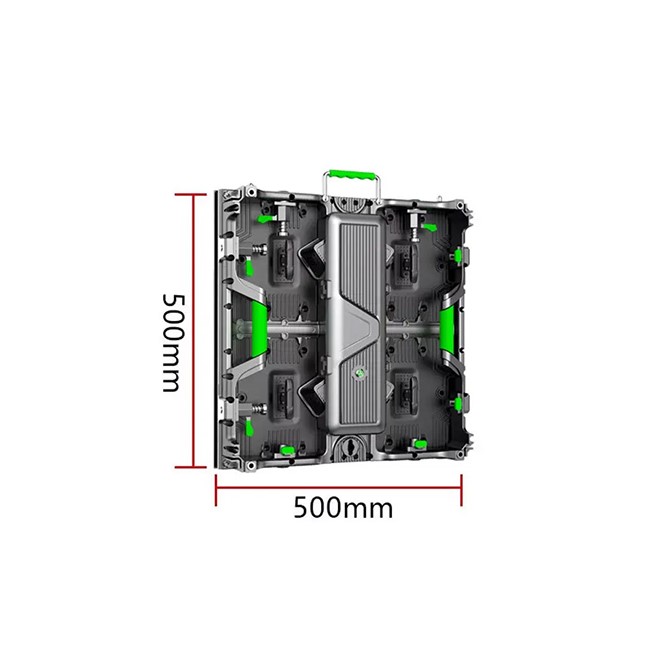

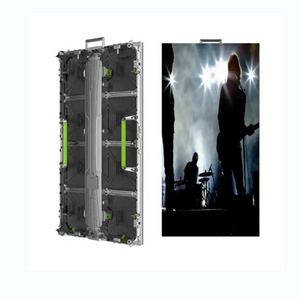

| Cabinet Size/mm | 500X500mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm |
| Cabinet Resolution | 192×192 dots | 168×168 dots 168×336 dots | 128×128 dots 128×256 dots | 104x104 dots 104×208 dots |
| Cabinet Weight | 8.5 kg 15kg | 8.5 kg 15kg | 8.5 kg 15kg | 8.5 kg 15kg |
| Cabinet IP Protection | IP65 | IP65 | IP65 | IP65 |
| Brightness (cd/m²) | ≧4000-6000 nit | ≧4000-6000 nit | ≧4000-6000 nit | ≧4000-6000 nit |
| View Angle/° | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) |
| Gray Scale/bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Max Power(w/m²) | 800 W/m² | 800 W/m² | 800 W/m² | 800 W/m² |
| Average Power(w/m²) | 240 W/m² | 240 W/m² | 240 W/m² | 240 W/m² |
| Refresh Frequency/Hz | 3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Operating Voltage | AC 96~242V 50/60Hz | |||
| Operating Temperature | -20~45 °C | |||
| Operatina Humidity | 10~90%R | |||
| Operating Life | 100,000 Hours | |||

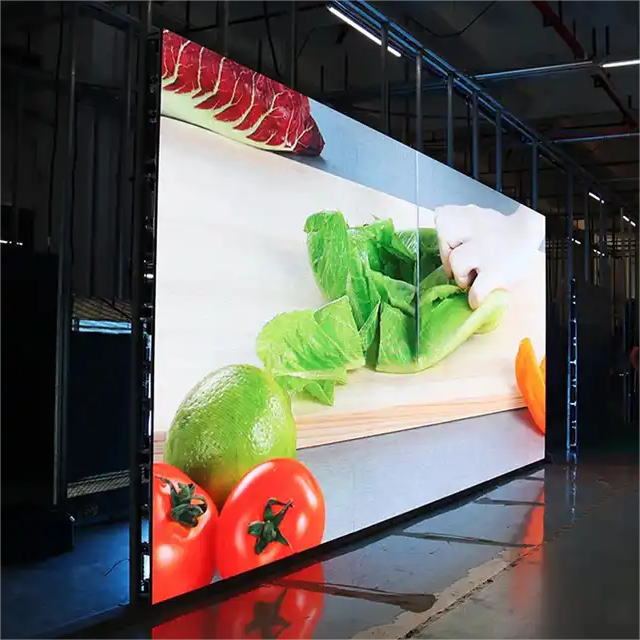

Indoor Rental LED Display Parameter
| Pixel Pitch(mm) | 3.91mm | 4.81mm | 2.604mm | 2.976mm |
| LED Spec | SMD2121 | SMD2121 | SMD1515 | SMD1515 |
| Apolication | Indoor | Indoor | Indoor | Indoor |
| Pixel Density(dot/m²) | 65536 dots | 43264 dots | 147456 dots | 112896 dots |
| Module Size/mm | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution | 64X64 dots | 52X52 dots | 96X96 dots | 84X84 dots |
| Module Weigh | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Scan | 1/16S | 1/13S | 1/32S | 1/28S |

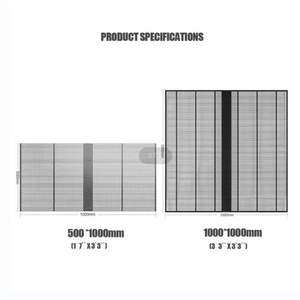

| Cabinet Size/mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm | 500X500mm 500X1000mm |
| Cabinet Resolution | 128×128 dots 128×256 dots | 104×104 dots 104×208 dots | 192×192 dots 192×384 dots | 168x168 dots 168×336 dots |
| Cabinet Weight | 7.5 kg 14kg | 7.5 kg 14kg | 7.5 kg 14kg | 7.5 kg 14kg |
| Cabinet IP Protection | IP24 | IP24 | IP24 | IP24 |
| Brightness (cd/m²) | ≧600-800 nit | ≧600-800 nit | ≧600-800 nit | ≧600-800 nit |
| View Angle/° | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) | 160°/140°(H/V) |
| Gray Scale/bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Max Power(w/m²) | 650 W/m² | 650 W/m² | 650 W/m² | 650 W/m² |
| Average Power(w/m²) | 195 W/m² | 195 W/m² | 195 W/m² | 195 W/m² |
| Refresh Frequency/Hz | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Operating Voltage | AC 96~242V 50/61Hz | AC 96~242V 50/62Hz | ||
| Operating Temperature | -20~45 °C | -20~46 °C | ||
| Operatina Humidity | 10~90%RH | 10~90%RH | ||
| Operating Life | 100,000 Hours | 100,001 Hours | ||
Product Uses
LED rental screens have specific applications in the following scenarios:

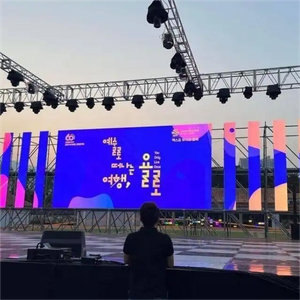

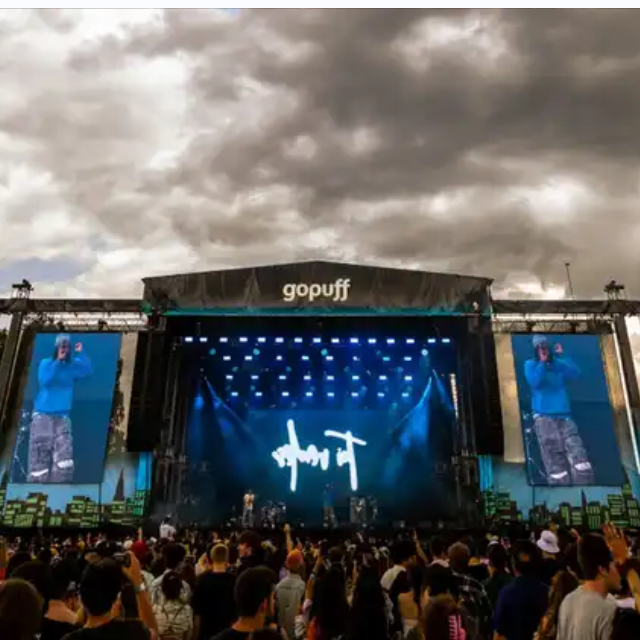

Concerts and Music Festivals:
Trade Shows and Exhibitions:
Sporting Events:
Corporate Events and Conferences:
Weddings and Social Gatherings:
Retail and Advertising:

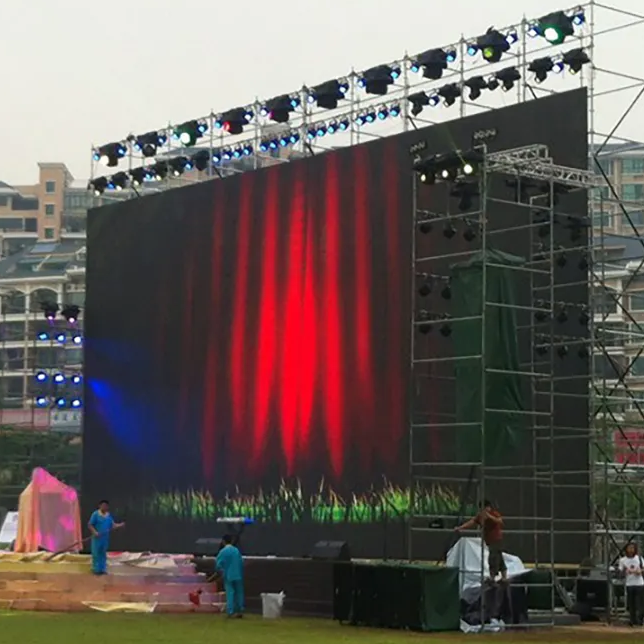

Public Spaces and Outdoor Events:
Theatrical Productions and Stage Performances:
FAQ
1. What types of LED displays does your company offer?
At our company, we provide an extensive selection of LED displays, encompassing indoor displays, outdoor displays, transparent displays, curved displays, and more. Our offerings can be tailored to meet specific project requirements, allowing for customization in terms of size, resolution, and specifications. This ensures that our clients receive LED displays that perfectly align with their unique needs and vision.
2. What industries do you serve with your LED displays?
We serve a wide range of industries, such as retail, advertising, sports, entertainment, transportation, hospitality, and more. Our adaptable LED displays can be customized to meet the specific requirements of different applications and environments. This versatility ensures that our clients can effectively utilize our LED displays across various industries, delivering impactful visual experiences tailored to their specific needs.
3. Are your LED displays energy-efficient?
Certainly! Our LED displays are meticulously engineered to prioritize energy efficiency. By leveraging cutting-edge LED technology and incorporating power-saving functionalities, we minimize energy consumption while maintaining exceptional display quality and brightness. This ensures that our clients can enjoy the benefits of our LED displays without compromising on sustainability or performance.
