Spherical LED Display Sphere LED Display LED Spherical Display Bar LED Screen

  • P2.5

  • Good Display

  • China

  • Good Display

  • yes

  • 320*160mm

  • 2.5 mm

  • Kinglight

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

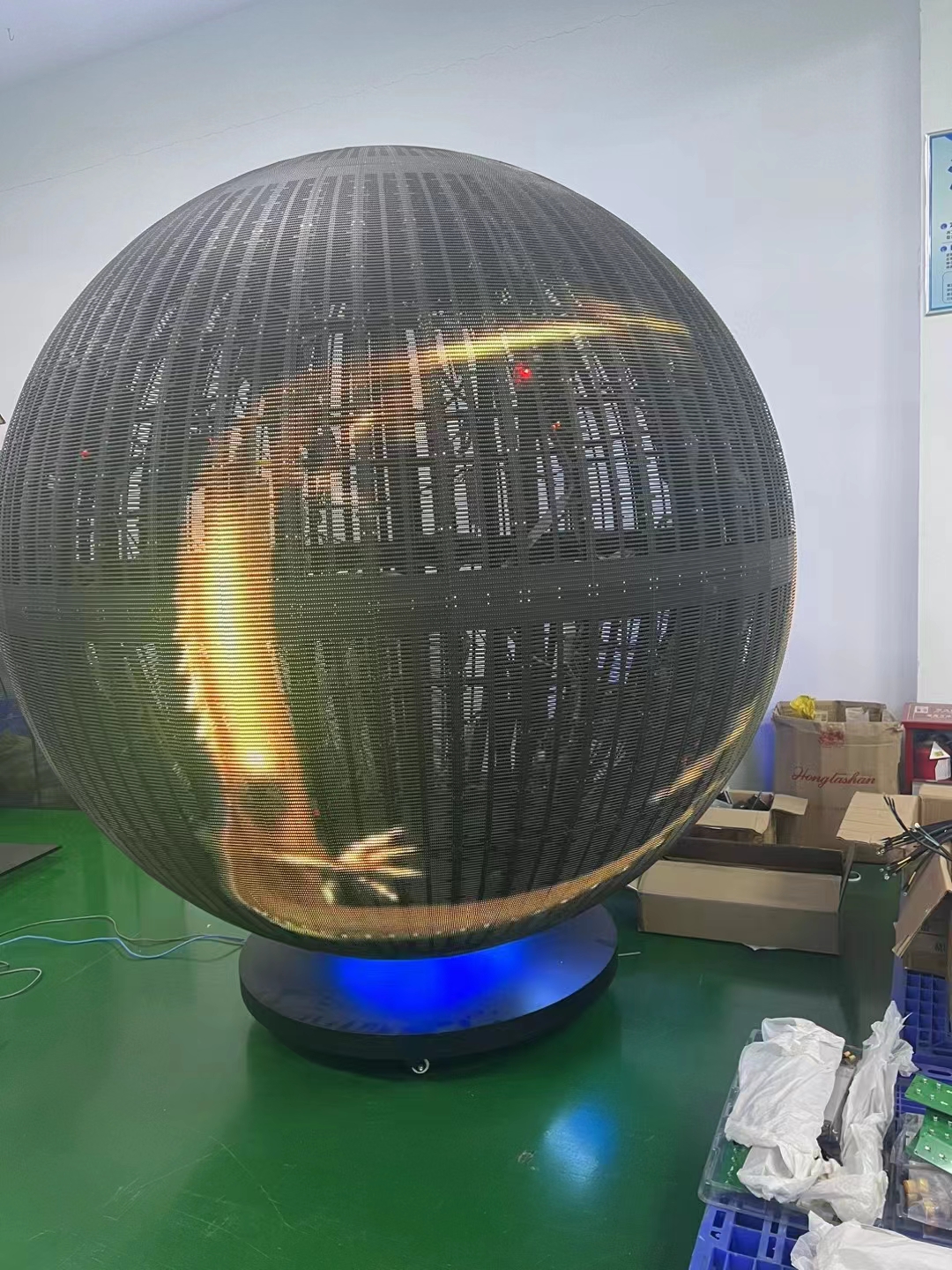

P2.5 Sphere display



Sphere display screen is a special form of display screen.

It has the following characteristics and uses


Full 360-degree visibility:

It can display content in all directions, delivering a comprehensive visual experience. This makes it highly suitable for presenting information, artworks, or immersive environments.


Enhanced three-dimensional realism:

The combination of the sphere's shape and display technology enables a more three-dimensional and realistic image effect, enhancing the audience's immersion and interactivity.


Attractive and eye-catching:

Its distinct spherical shape and dynamic display content have a tendency to draw people's attention, making it a standout feature in exhibitions, advertisements, or public areas.


Versatile in application:

It can be utilized in various ways, such as displaying sphere maps, data visualization, virtual reality experiences, art performances, and more.


Interactive capabilities:

Some sphere displays offer interactive functions, allowing viewers to engage with the displayed content through touch, gestures, or other sensors, enhancing participation and enjoyment.



edb1d82b36c94f8553822c4ad138df2

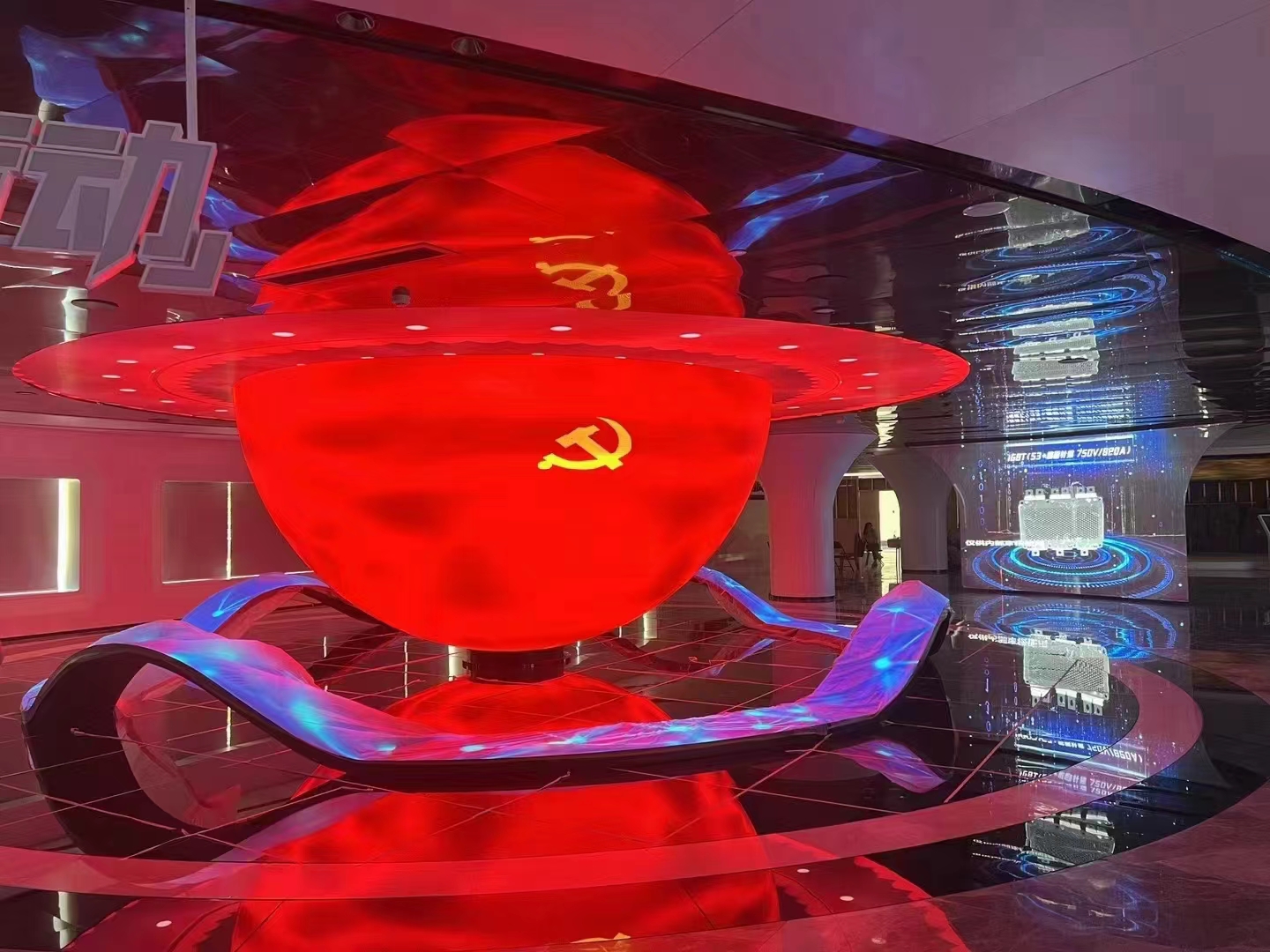

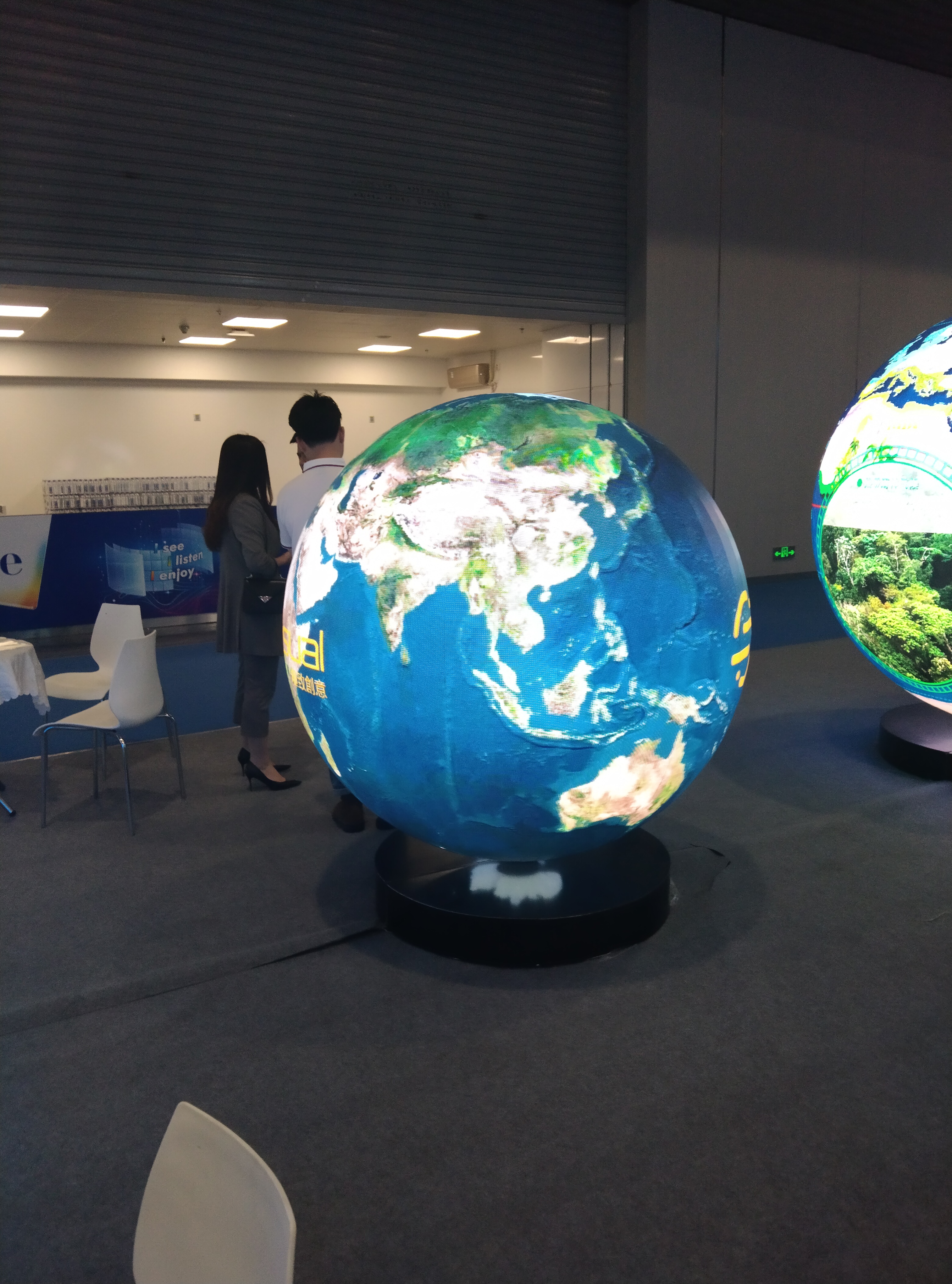

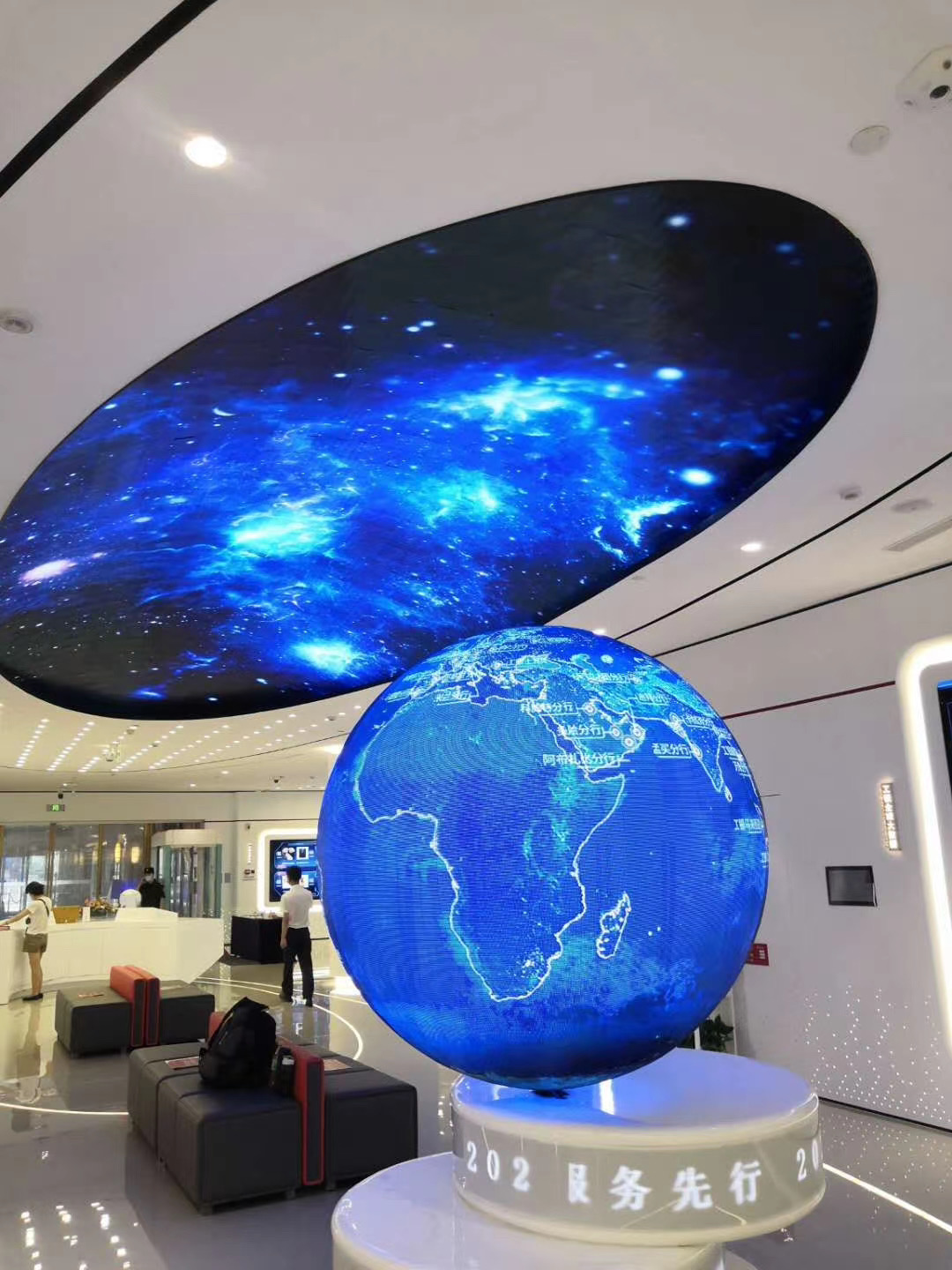

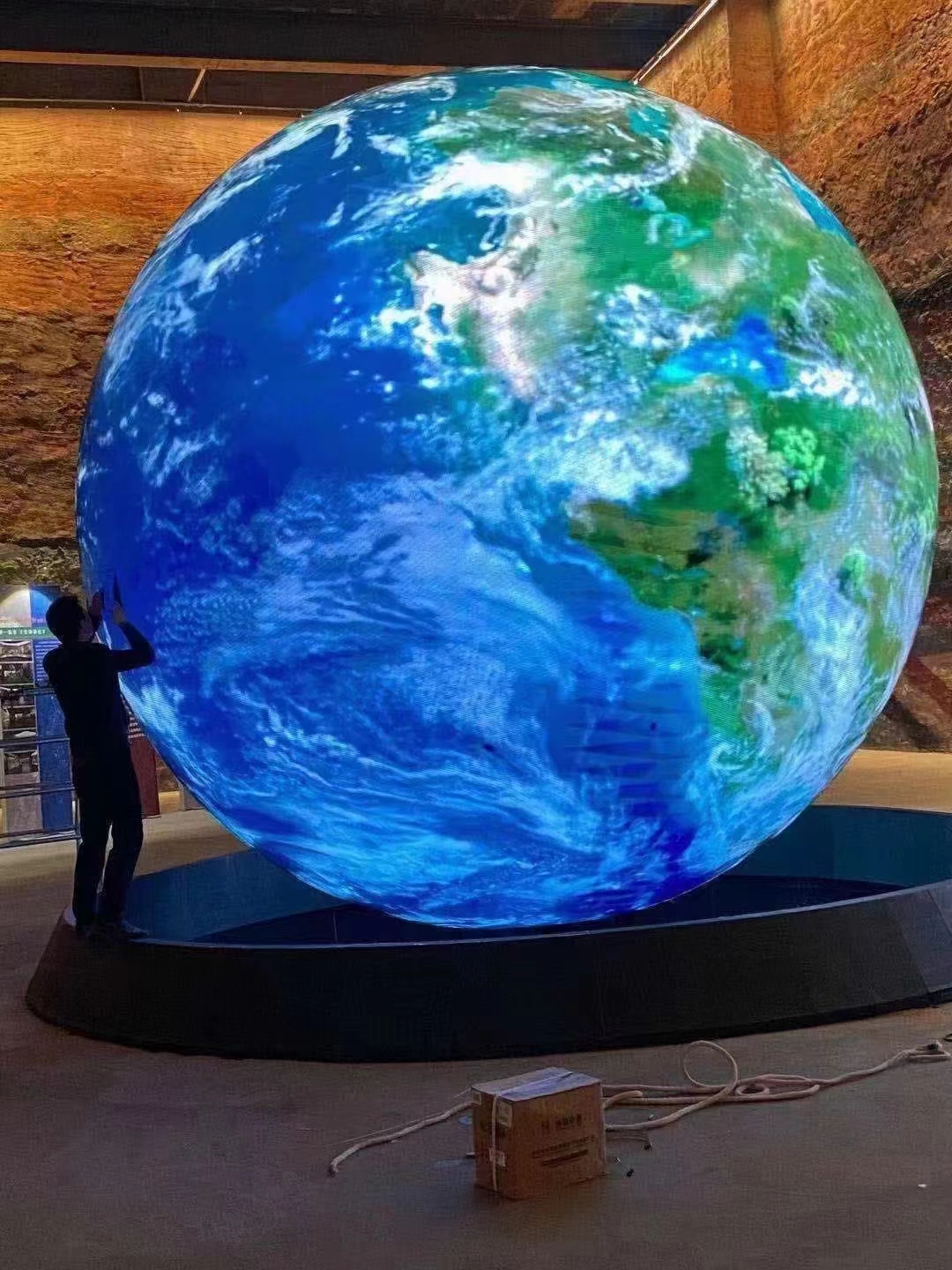

Application scenarios

application scenarios


Science and technology museums, museums and exhibition halls:

used to display scientific knowledge, history and culture, artworks, etc., and provide interactive and immersive visiting experiences.


Stage performances and art performances:

As part of the stage scenery or art installation, create unique visual effects and performance atmosphere.


Commercial advertising and publicity:

Display advertisements and brand information in shopping malls, squares and other places to attract customers' attention.


Sports venues and activities:

Used to display game scores, statistical data, audience interaction, etc., to increase the atmosphere and entertainment of the scene.


Education and training:

Used in educational venues to display teaching content in a vivid way to improve students' learning interest and participation.


Product parameters




P4mm LED spherical screen parameters

Technical Parameters

number

Product name

brightness

Angle(H/V)

wavelength

Test temperature and current

1

Red LED

102~125mcd

120o/120o

620~625nm

25℃,20mA

2

Green LED

240~300mcd

120o/120o

520~525nm

25℃,20mA

3

Blue LED

60~80mcd

120o/120o

470~475nm

25℃,20mA

Technical Parameters

1

LED

SMD2121

2

LED Pixel composition

1R1G1B

3

white balance ratio

0.129178241

4

Pixel pitch

4mm

5

Pixel density

62500/m2

7

Spherical diameter

2.5m

8

Drive mode

1/16S

13

spherical weight

28KG/m2

14

brightness

≥ 1500 cd/m2

15

perspective

360°

16

Visible distance

4-40m

17

Number of grayscale bits

≥16bits/ 4096 level

18

color

1.67billion

19

Maximum power

800 W/m2

20

average power consumption

400W/m2

21

Power supply requirements

110V / 220V,50-60Hz

22

frame change frequency

60Hz

23

Refresh frequency

≥1200Hz

24

Dimming

0-100%

26

System correction digits

16bits

27

color temperature

7000-8500K

29

Input signal source

S-Video,RGB,RGBHV, YUV, YC,Composition

30

Run the system

Windows(98,2000,XP,Vin7)

31

Control System

Moser synchronization control

33

Storage temperature

(-40℃+85℃)

34

Operating temperature

( -20℃+50℃ )

35

Operating humidity

10-90% RH

36

Whole screen life

100,000Hours

37

downtime

5000Hours

38

waterproof level

IP31

39

Modular patchwork

≦2mm

40

Pixel out-of-control rate

≦0.0001
